Fly Laser Engraving Marking Machine Online Printer For Medical Packaging Printing

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number LU5F
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case, 147x66x67cm, 135KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UV Laser Marking Machine Laser Source UV Laser
Laser Power 5W Laser Wave 335um
Marking Range 110mm*110mm Marking Speed ≤12000mm/s
High Light

Fly Laser Engraving Marking Machine

,

Online Engraving Marking Printer Machine

,

335 um Laser Marking Machine

Leave a Message
Product Description

Fly Laser Engraving Marking Machine Online Laser Printer For Medical Packaging Printing


Description of UV Laser marking machine:

UV laser marking machine can satisfy many new applications which low power laser can not achieved. For example high speed online coding, Glass & Plastic Inner Carving, Electronic parts cleaning, PCB Cutting, PCB Marking, Drilling.Compare to other laser source, UV laser printer has high electro-optical conversation rate, high quality laser beam, and with tiny spot size, ultra-fine marking. The core part crystal has longer service life than before, stable operation, high accuracy positioning & high efficiency working , even after long time running. The compact design is easy to install and assemble, working smoothly and stable. The UV laser marking quality is perfect, because of the UV laser beam carry less heat power, so the heat-affected zone is smaller, thermal effect is less, the material will not deformed and not burnt. The marking effect is fine and can be repeatedly processed, and the high-precision & tiny spot ensures the perfect marking result, and it is no contact marking, so the marking effect is permanent.


Main Characters of UV Laser marking machine:

  1. Friendly operating interface

  2. Zero consumption of any materials

  3. 24-hour continuous and stable processing

  4. Remarkable marking effects

  5. Widely used for material such as electronics components, Auto parts, jewelry, leather, pipes, etc



Technical Parameters of UV Laser marking machine:



focusing lens Focus distance 190mm(Optional)
Marking Line type Dot-matrix, Vector font can be printing
Min Line size 0.01mm
Repeated positioning accuracy 0.003mm
Marking Area 110mm×110mm(Optional)
Positioning Red light positioning and automatic focus
Line Printing Multi-line within marking size
Production line Speed 0~100m/min (based on different materials)
Power Supply 110-240V
power consumption 1100W
N.W 80KG
Font English, logo, number, date, time, barcode etc...



Product Pictures of UV Laser marking machine:

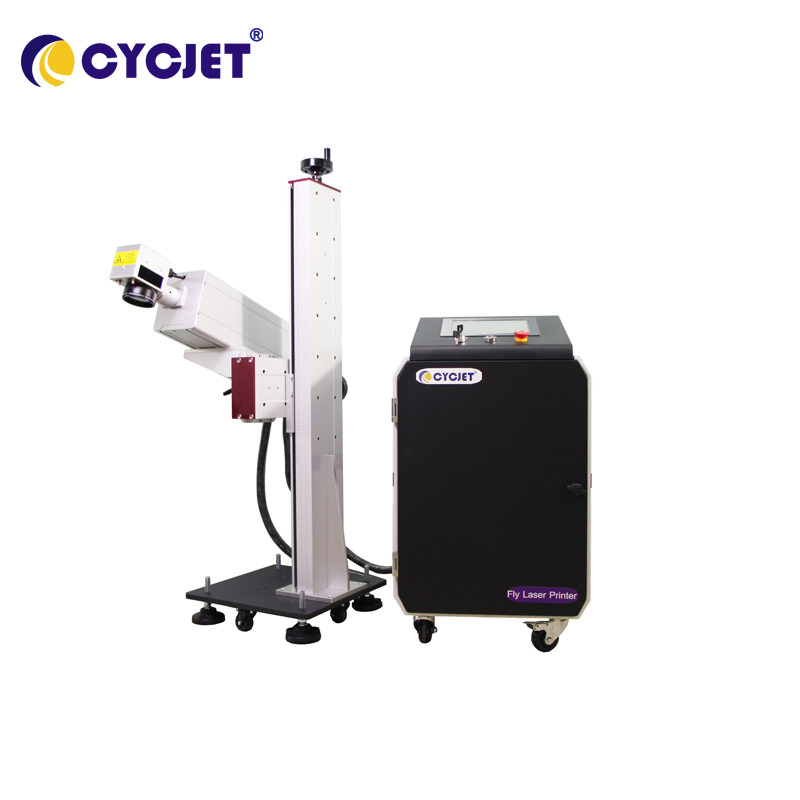

Fly Laser Engraving Marking Machine Online Printer For Medical Packaging Printing 0

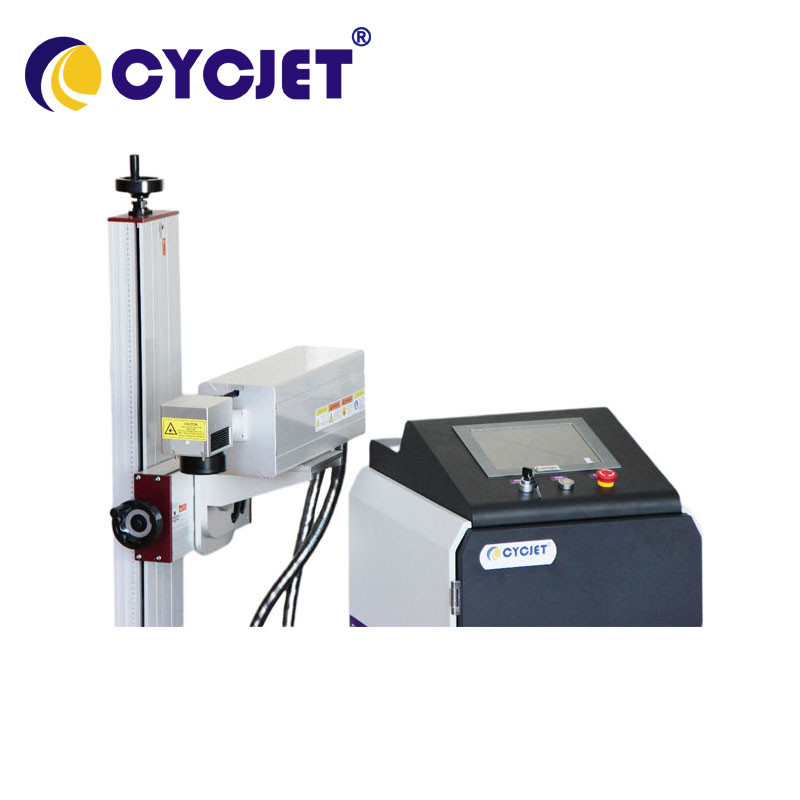

Fly Laser Engraving Marking Machine Online Printer For Medical Packaging Printing 1


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
