Metal Sheet 1000w Laser Cutting Machine Engraving 1070 Nm 3000x1500mm
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CYCJET |
| Certification | CE, SGS, FDA |
| Model Number | CLU 1000 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiated |
| Packaging Details | Suitcase and Carton,370X228X250 cm,1200kg |
| Delivery Time | 10-12 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Laser Cutting Machine | Type | Fiber Laser |
|---|---|---|---|
| Laser Wavelength | 1070 Nm | Beam Quality | ＜0.373mrad |
| Effective Cutting Range | 3000×1500 | Axial Positioning Accuracy Of Worktable | ≤±0.02mm/m |
| Repeated Positioning Accuracy Of Worktable | ≤±0.02mm/m | Output Power | 3000W |
| High Light | Metal Sheet 1000w Laser Cutting Machine,1070 nm laser engraving machine,1500mm laser engraving machine |
||
Product Description
Metal Sheet Laser Cutting Machine 1000w Fiber Laser 3000*1500mm Cutting Area
Introduction of Laser Cutting Machine:
The laser cutting machine is to focus the laser emitted from the laser into a high power density laser beam through the optical path system. The laser beam is irradiated on the surface of the workpiece, making the workpiece reach the melting point or boiling point, while the high-pressure gas coaxial with the beam blows the molten or vaporized metal away. With the movement of the relative position of the beam and the workpiece, the material is finally formed into a slit, so as to achieve the purpose of cutting.Laser cutting machine use German imported IPG fiber lasers,it is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.
Main Features of Laser Cutting Machine:
-
Special wavelength (1070nm), with the unique ability to cut high-reflective materials such as aluminum, copper, brass, etc.
-
The laser electro-optical conversion rate is about 25%, which is much higher than CO2 (<10%), which greatly reduces the power loss
-
Laser is transmitted through optical fiber, basically no transmission loss
-
Modular design, "plug and play", compact size, easy installation, no need for laser and beam transmission system maintenance
-
Long service life,the service life of the pump source> 100,000 hours
Technical Parameters of Laser Cutting Machine:
| 1 | Name | Laser cutting machine |
| 2 | Power | 1000W |
| 3 | Laser type | Fiber laser |
| 4 | Laser wavelength | 1070 nm |
| 5 |
Cutting speed |
≤30m/min |
| 6 |
Maximum load of worktable |
1600KG |
| 7 |
Power supply rated parameters |
380V 50Hz |
| 8 |
Equipment power |
9KW |
| 9 |
Protection level |
IP54 |
| 10 |
Rated output power |
3000W |
| 11 | Positioning accuracy | ≤±0.02mm/m |
| 12 | Repositioning accuracy | ≤±0.02mm/m |
| 13 | Cutting range | 3000×1500mm |

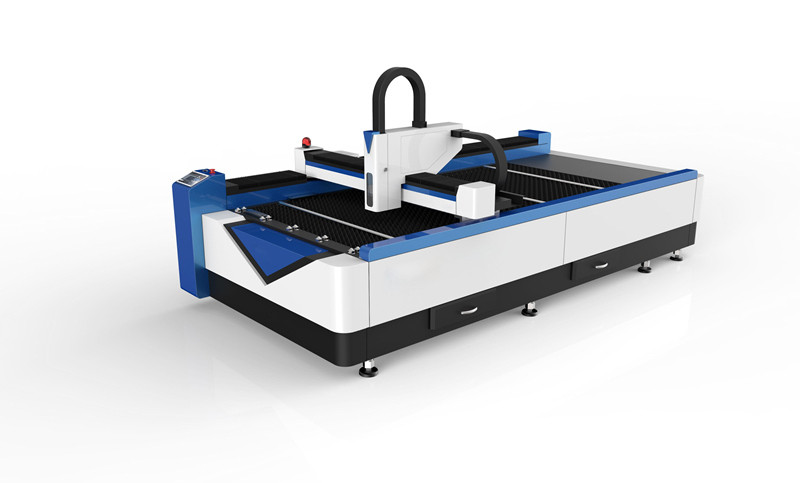

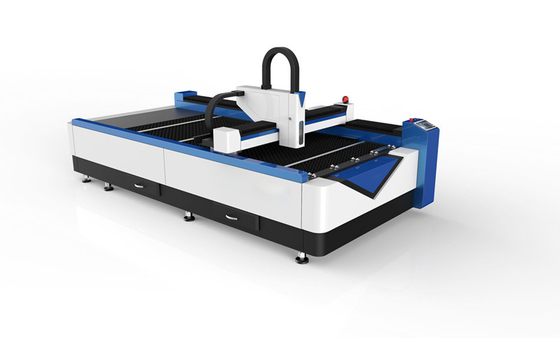

Product Pictures of Laser Cutting Machine:
Cutting Pictures of Laser Cutting Machine:
Company Pictures:
FAQ:
Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.
Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
