Fly 50W Fiber Laser Marking Machine For Production Line Engraving

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number LF50F
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Marking Machine Applicable MaterialCO2 Laser Printer Metal,Plastic
Laser Power 50W Laser Wavelength 930nm
Marking Speed 0-7000mm/s Marking Area 110mm*110mm
High Light

Fly 50W Fiber Laser Marking Machine

,

Metal Fiber Laser Marking Engraving Machine

,

50W Fiber Laser Marking Machine

Leave a Message
Product Description

Fly 50W Fiber Laser Marking Machine For Production Line Marking Laser Engraving


Descrption of Fly Fiber Laser Marking Machine:


LF50F fiber laser marking machine with flexible variable text processing, which changes text in real time during processing, and can directly read and write text files. Stable performance, professional technology and long life. The fiber laser marking machine galvanometer adopts high-speed galvanometer scanning, digital signal, high precision and fast speed. The high-quality laser scanning system enables the marking speed to reach 10000mm/s. The laser bracket of the fiber laser marking machine adopts precision alloy and imported precision linear device, the angle of the laser head can be adjusted 180 degrees, front and rear, up and down can be adjusted. The flexible worktable has multiple screw holes, which are convenient for customized installation and can be used with the production line.


The machine is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelers accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.

Main Features of Fly Fiber Laser Marking Machine:

1. Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (600 w) or less, use cost.
2. Integrated design, small size (there are a whole cabinet and portable optional).
3. Bar code, QR code, graphics, text rules and irregular marking serial number, etc.
4. With superior laser beam, and precise light spot, it is no need of consumable items.
5. The scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.



Technical Parameters of Fly Fiber Laser Marking Machine:

Marking line type Dot matrix, bold, vector all in one
Minimum line width 0.012mm
Repeatability accurate positioning 0.003mm
Marking Area Standard 110mm×110mm
Marking height 110mm
Marking Length Unlimited
Positioning mode Red light positioning and focusing
Number of characters Any line(multi-line) within marking range
Line Speed Depends on material &text
Power Consumption 600W
Net Weight 75kg
Oversize 380mmX420mmX130MM

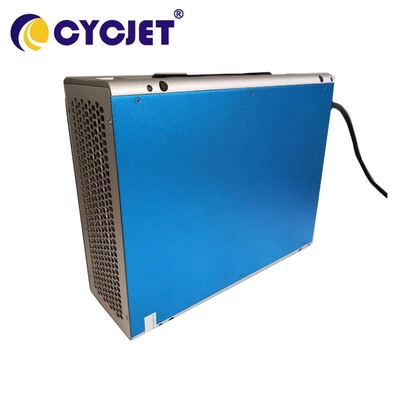

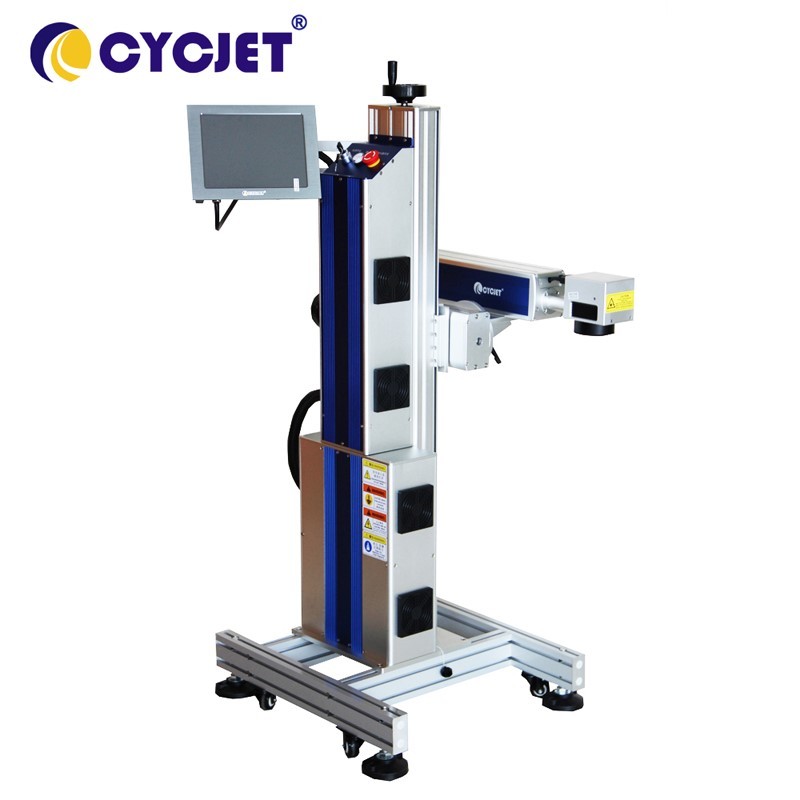

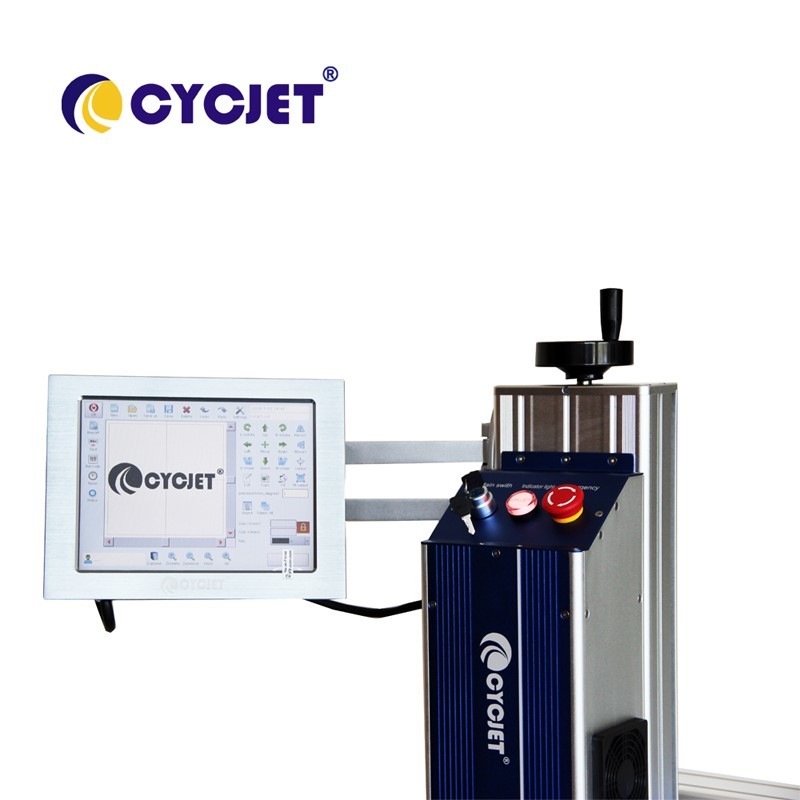

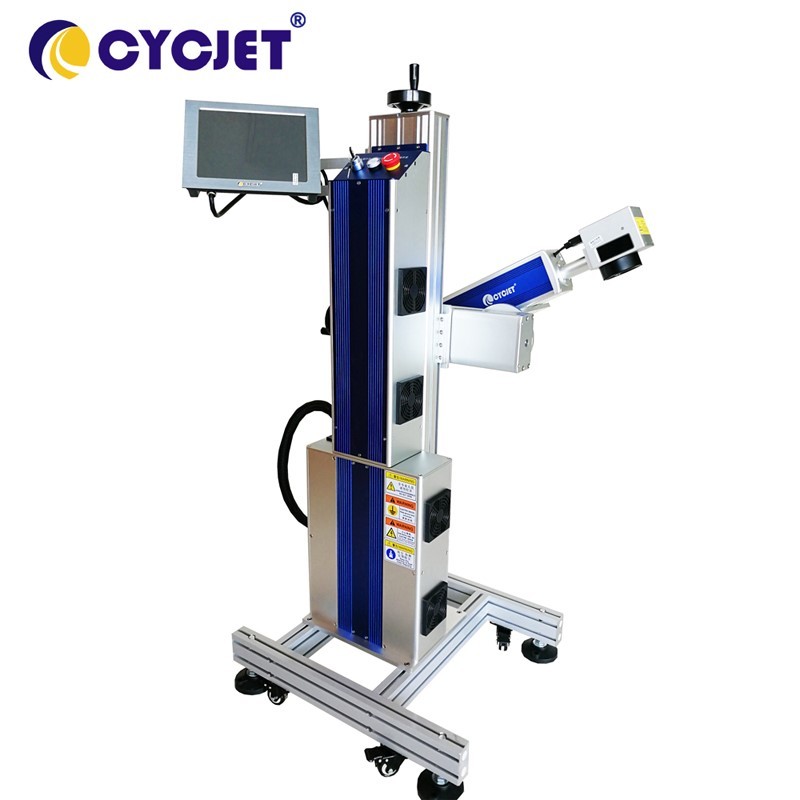

Product Show of Fly Fiber Laser Marking Machine:

Fly 50W Fiber Laser Marking Machine For Production Line Engraving 0


Application of Fly Fiber Laser Marking Machine:

Fly 50W Fiber Laser Marking Machine For Production Line Engraving 1

Package

Fly 50W Fiber Laser Marking Machine For Production Line Engraving 2


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
