UV Laser Marking Machine 10W High Resolution 110*110mm Printing
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CYCJET |
| Certification | CE, SGS, FDA |
| Model Number | LU15F |
| Minimum Order Quantity | 1 Set |
| Price | Negotiated |
| Packaging Details | Wooden Case, 147x66x67cm, 135KG |
| Delivery Time | 10-12 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | UV Laser Marking Machine | Laser Source | UV Laser |
|---|---|---|---|
| Power | 15W | Laser Wave | 335um |
| Marking Range | 110mm*110mm | Marking Speed | ≤12000mm/s |
| High Light | UV Laser Marking Machine 10W,High Resolution UV Laser Marking Machine,110*110mm UV Laser Marking Machine |
||
Product Description
UV Laser Marking Machine 10W High Resolution 110*110mm Printing
Description of UV Laser marking machine:
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.The equipment is mainly used to mark Chinese characters, English, numbers, batch numbers, production dates, period of validity, LOGO, real time clock information and digital anti-counterfeiting, which meets the demand of pharmaceutical industry GMP and food industry HACCP.
Main Characters of UV Laser marking machine:
- Flexible structure, the professional stand can be installed on the assembly line, easy adjustment
- Professional industrial laser source, faster marking speed and consistent marking, high reliability, operated continuously in 24 hours, meet the demands of mass processing and production
- High electro-optic conversion efficiency, low consumption, long life, save a lot of processing costs for customers
- Friendly man-machine dialogue interface, easy operation, without bothering for the operators altering.
Technical Parameters of UV Laser marking machine:
| Product Name | UV Fly laser marking machine |
| Marking Line type | Dot-matrix, Vector font can be printing |
| Min Line size | 0.01mm |
| Repeated positioning accuracy | 0.003mm |
| Marking Area | 110mm×110mm |
| Positioning | Red light positioning and automatic focus |
| Line Printing | Multi-line within marking size |
| Production line Speed | 0~100m/min (based on different materials) |
| Power Supply | 110-240V |
| Power consumption | 1100W |
| Weight | 80KG |
| Font | English, logo, number, date, time, barcode etc... |

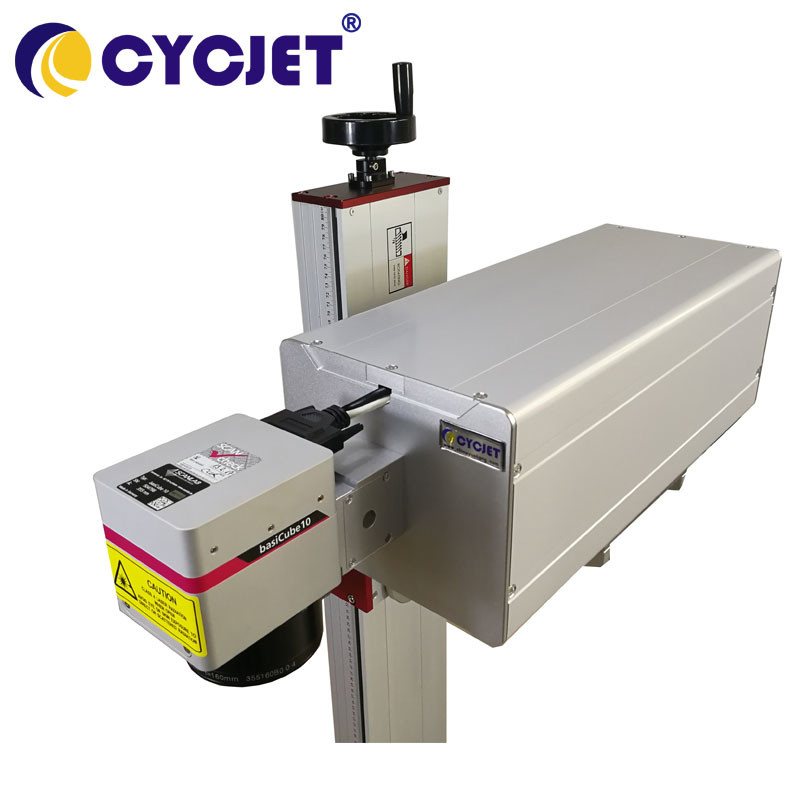

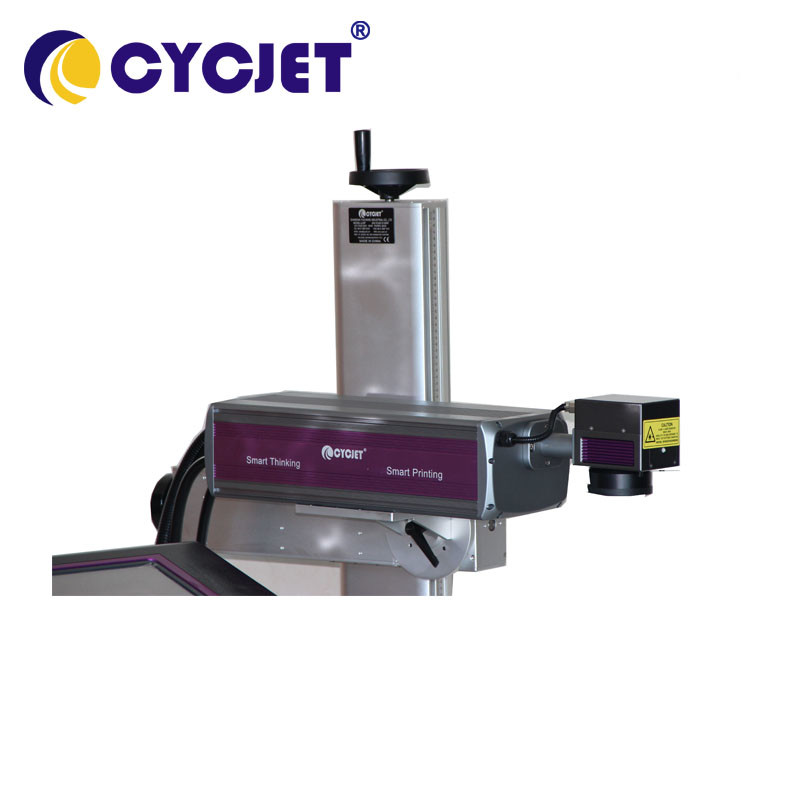

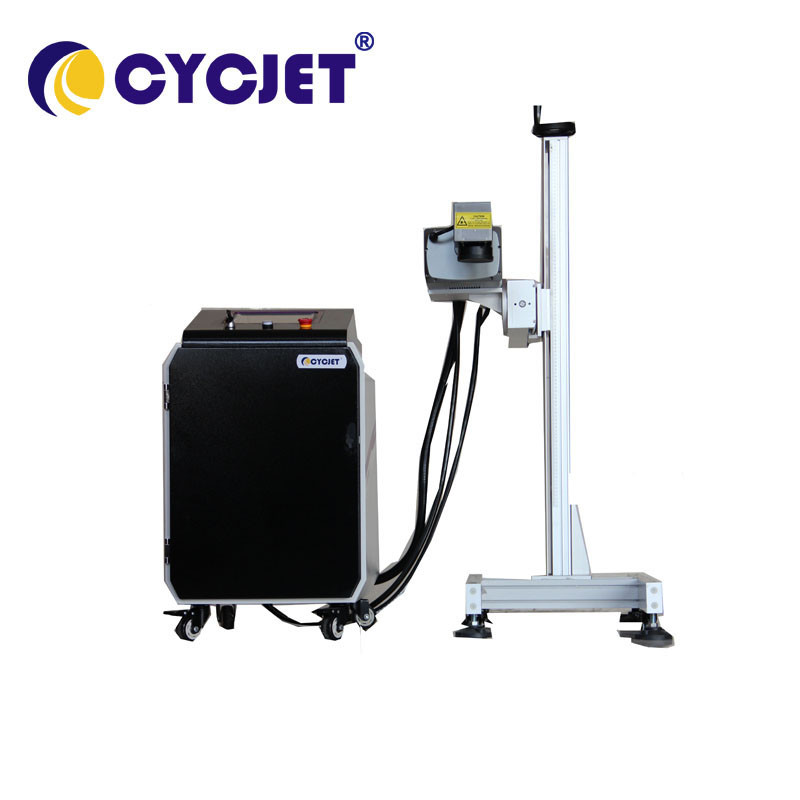

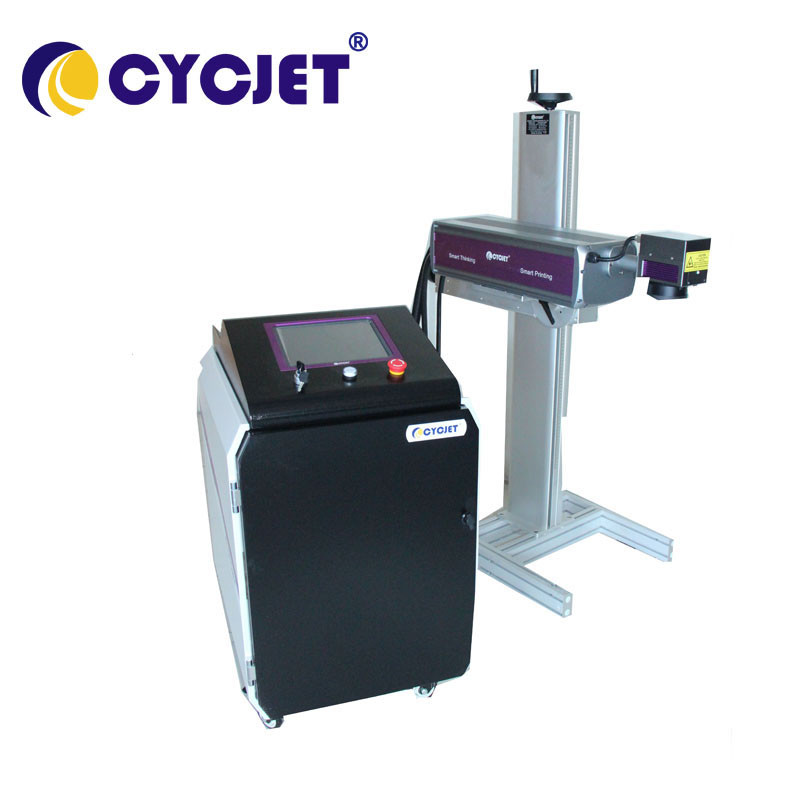

Product Pictures of UV Laser marking machine:
FAQ:
Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.
Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
