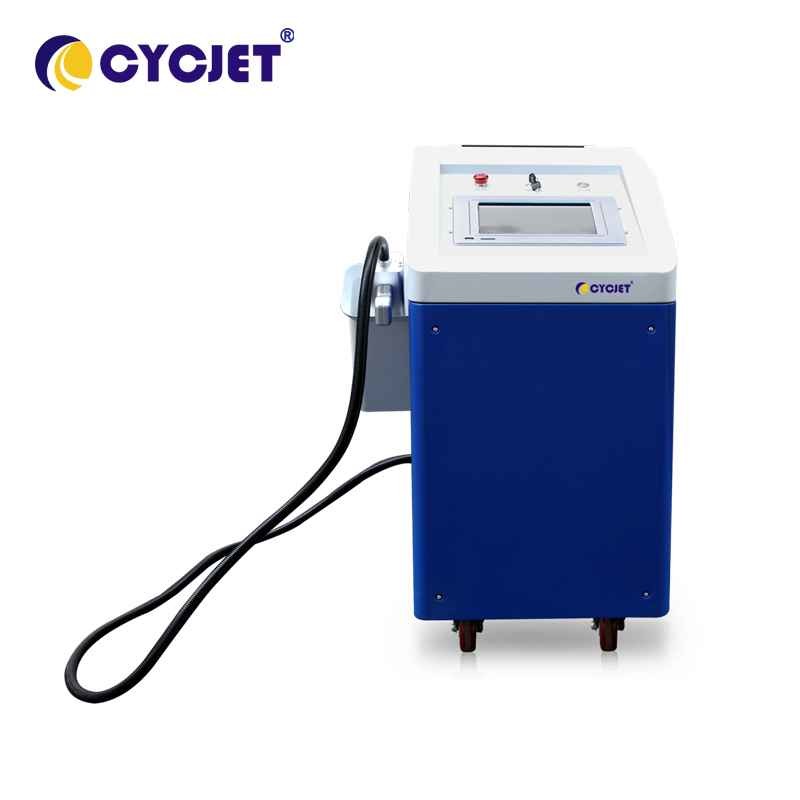

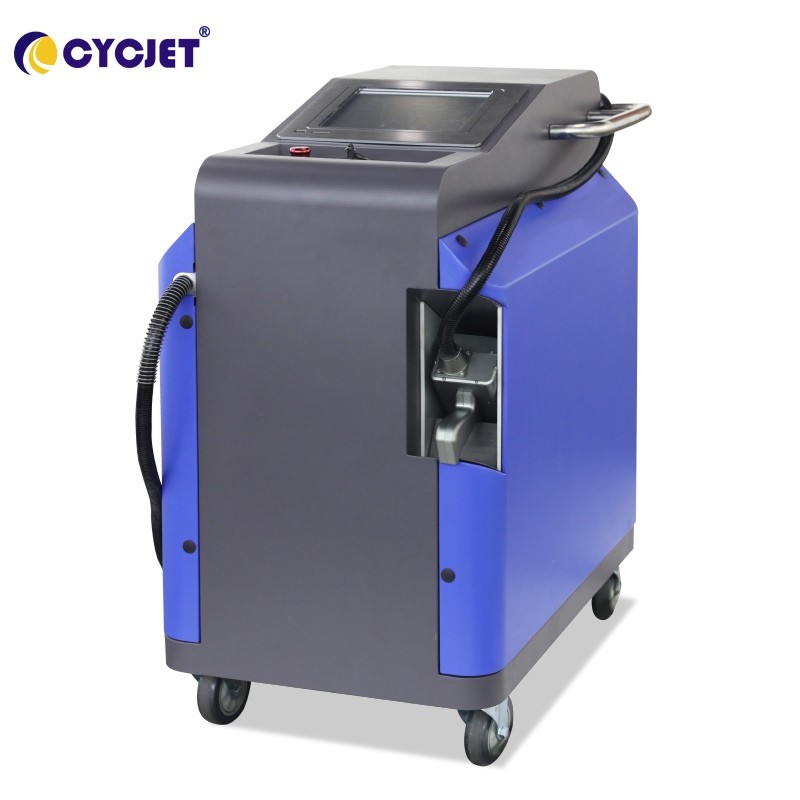

CYCJET Metal Portable Fiber Laser Cleaner 100W Hand Held Laser Rust Remover

  • CYCJET Metal Portable Fiber Laser Cleaner 100W Hand Held Laser Rust Remover
  • CYCJET Metal Portable Fiber Laser Cleaner 100W Hand Held Laser Rust Remover
Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLC100
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden Case
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 10 Working Days Name Laser Cleaning Machine
Output Power 100W Laser Wavelength 1055nm-1070nm
Scanning Width 1mm-120mm Washing Methos Manual
Cooling Air Warranty 1 Year
High Light

CYCJET portable fiber laser cleaner

,

metal portable fiber laser cleaner

,

100W hand held laser rust remover
Leave a Message
Product Description

100W Handheld Laser Cleaning Machine used to remove rust from metal surface laser cleaner



Description of Laser Cleaning Machine:



    Laser cleaning machine is a new technology, the working principle is send the continously laser beam to the surface which have rust, painting, Oil, glue, coating etc. The traditional cleaning method is kind of contact cleaning, which must exert pressure forcing on the surface of the cleaning object, to damage the object surface, which cannot be removed and produces secondary pollution. The 100w Fiber laser cleaning machines can solve these problems. CYCJET Handheld laser cleaning machine can remove various types of pollutants on the surface of various materials and achieve the cleanliness that conventional cleaning cannot achieve. Such as Contamination-free cleaning of oil, rust, coatings, coatings, paints, surface oxides, etc.



Specification of Laser Cleaning Machine:
1 Name:  100W Handheld Laser Cleaning Machine used to remove rust from metal surface laser clleaner
2 Average Output Power: 100W
3 Output power instability ＜5%
4 Repeat frequency(kHz) 10-50 (Gradient adjustable)
5 Maximum single pulse energy(mJ) 1
6 Peak power(kW) 90
7 Core(μm) 30
8 Standard cable length 5m
9 Scanning Width Range: 1-120mm
10 Cleaning thickness(mm) 1
11 Cleaning efficiency(m2/h) 10
12 Focal length(mm) 160/220 mm replaceable
13 Cleaning Methods: Manual Type and automatic
14 Cooling: Air cooling / Water cooling
15 Laser Source Optional MAX/JPT/IPG
16 Machine Capacity: 800-1000w
17 Power Supply: 220V / 50-60HZ, Can support 110v/50-60HZ
18 Cleaning Head Weight:  2.5kgs
19 Weight:  60kgs
20 Working Environment Temperature: 5℃-40℃





Features of Laser Cleaning Machine:



  1. High efficiency and environmental protection, no chemical pollution. The fiber laser cleaning machine can create powerful laser beam, remove the rust or dirty surface faster and no chemical pollution.
  2. Easy to operate, no need to disassemble and transport the mold. Easy to remove the machine to any place you want, ideal for the big or heavy object which can not transport.
  3. Power on and use without consumables, simple operation, just power on, can be hand-held or cooperate with the robot to realize automatic cleaning
  4. Adjustable laser parameters, suitable for a variety of environments, better effect
  5. The light output width can be set, and the cleaning is accurate
  6. Real-time monitoring of cleaning quality: The multi-sensor can monitoring cleaning result same time
  7. By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Application of Laser Cleaning Machine

  1. Clean the rust on metal surface
  2. Remove the painting from metal
  3. Surface oil, stain, dirt cleaning
  4. Surface coating removal
  5. Welding surface, spray surface pretreatment
  6. Rubber mold surface cleaning



Cleaning result of Fiber laser cleaning machine



CYCJET Metal Portable Fiber Laser Cleaner 100W Hand Held Laser Rust Remover 0



CYCJET Metal Portable Fiber Laser Cleaner 100W Hand Held Laser Rust Remover 1
