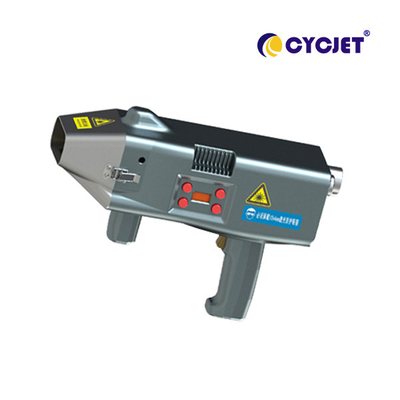

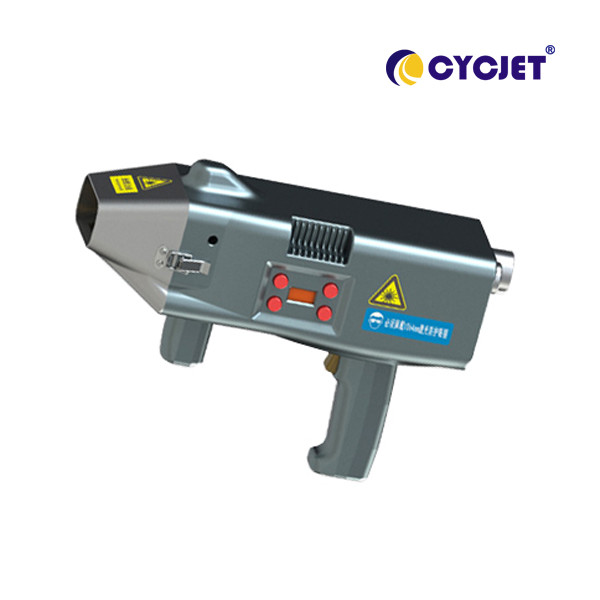

Portable Fiber Laser Cleaner Rust Removal Machine 100W Battery Powered

Place of Origin Shanghai, Jiading
Brand Name CYCJET
Certification SGS, FDA, CE, ROHS
Model Number CLC100
Minimum Order Quantity one Set
Price USD8500-USD19500
Packaging Details Standard Export Carton
Payment Terms L/C at sight, T/T, Western Union, Western Union, MoneyGram,Paypal
Supply Ability 300 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 10 Working Days After We Receive Down Payment Name 100w Rust Laser Cleaning Machine
Output Power 100W Laser Wavelength 1064nm
Scanning Width 1-50mm Washing Methos Handheld Type
Cooling Air Cooling And Water Cooling Warranty One Year After Receive The Goods
Application Injection Molding, Tire Molding, Iron, Steel Frame Laser Source IPG/MAX/RAYCUS
High Light

Portable Fiber Laser Cleaner Rust Removal

,

100W Fiber Laser Cleaner Rust Removal

,

handheld laser rust removal machine

Leave a Message
Product Description

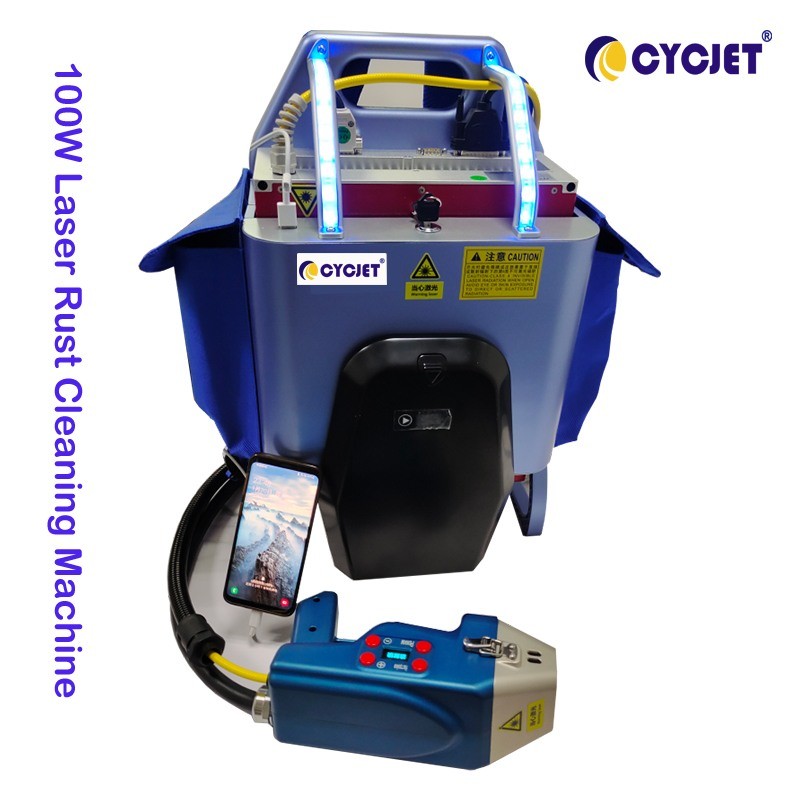

Description of Portable Laser Rust Cleaning Machine:

    This is new generation portable laser cleaning machine, which designed like a bag, battery-powered by lithium battery, so the operator can carry it to the place which space is narrow, and the bigger laser cleaning machine can not reached. The laser cleaning rust machine handheld gun size is more compact and light weight, and has a variety of styles to choose from. The control system running on the touch screen, and 4 buttons assist to control machine. The handheld laser rust removal machine integrated cleaning mode makes the equipment operation easier, safe and more stable, and reduces accidents caused by touch screen failure accident.



    The 100w portable laser cleaning machine start easy by the button, the operation system can start sucessfully within 1 minute. The monitorng system can monitor machine in real time, so the operator can see the machine status easy through screen. Equipped the safety lock, to avoid unconsciously touching make incorrect operation. The dual cooling way make sure machine working on the stable temperature.



    As the latest cleaning technology, fiber laser cleaning machine will not have the gasification during cleaning processing, so laser cleaning removal machine do not produce any toxic gas and affect operator safety, or pollute environment. Tire molding laser cleaning machine already widely used in some European and American tire factories. Although the initial investment cost much higher than normal cleaning machinery, but the factory can save more money for standby time, avoiding molding damage, safe production and saving raw materials.




Specification of Portable Laser Rust Cleaning Machine:

1 Product Name:  100W Portable Mini laser cleaning machine, Battery-powered laser cleaning rust machine
2 Average Output Power: 100W
3 Output power Instability <5%
4 Repeat Frequency 10-50kHz
5 Cleaning Mode
6 Standard cable length 3m
7 Scanning Width Range: 100 mm
8 Focal length(mm) 160/220mm
9 Battery Volume 26AH
10 Overall Size 360*500*230mm
11 Cleaning Head Weight:  2.5kgs
12 Net Weight:  18kgs
13 Working Environment Temperature: 5-40 degree



Comparasion of Advantage of Laser Cleaning Machine


Comparasion Item Laser Cleaning Chemical Cleaning Mechanical Cleaning Dry Ice Cleaning Ulreasonic Cleaning
Cleaning Way no contact Chemical Cleaning Mechenical sand paper, contact no contact Contact
Surface Damage No Yes Yes No No
Cleaning Efficiency High Low Low Midium Medium
Consumable Material Power Only Chemical Liquids Sand paper, grinding wheel etc Dry Ice Special cleaning liquids
Cleaning Result Perfect with high cleanliness Non Uniform Non Uniform Excellent, non uniform Excellent, less clean scope
Precise Cleaning High precision Uncontrolable Uncontrolable Uncontrolable Uncontroable
Safety & Enviromental Protection No Pollution Chemical Liquids pollution Pollution No pollution No pollution
Operation Simple handheld or automatic operation Complicated operation steps,posing high requirement for operator Complicated operation procedures, posing high requirement for operator Simple handheld operation Simple handheld operation, but need more consumable materials
Cost Input High initial investment, no consumable, low maintenance cost Low initial investment, but high consumable material cost High initial investment, high consumable material cost Medium initial investment, high cost for consumable materials Low initial investment, high cost for consumable material


Features of Portable Laser Rust Cleaning Machine:

  1. High efficiency and environmental protection, do not have any chemical pollution during cleaning process. The 100w  laser rust cleaning machine can create powerful laser light, remove the rust on most of auto spare parts
  2. Simple & easy to operate the portable laser cleaning machine, no need to disassemble and transport the big spare parts like steel frame, heavy duty steel parts. Easy to carry the machine by belts to any place. Ideal for the big or heavy object which can not transport, for example plastic injection molding, tire molding, steel frame etc.
  3. Power on and use without consumables, simple operation, just power on, can be hand-held or cooperate with the robot to realize automatic cleaning
  4. The operator can adjust laser parameters or output mode, suitable for a variety of environments, better cleaning result
  5. The laser output width can be set by touch screen, and the cleaning is more accurate than other cleaning.
  6. Real-time monitoring of cleaning quality: The multi-sensor can monitoring cleaning result same time
  7. By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Application of Portable Laser Rust Cleaning Machine

  1. Metal, glass, ceramic surface coating removal, quick paint removal.
  2. Can remove rust and various oxides from the surface
  3. Remove oil, resin, glue, dust, stains, rubber, plastics production residues.
  4. Metal and plastic surface roughening
  5. Welding surface, spray surface pretreatmentPaint stripping, rust removal, and oil removal before welding or bonding, and oxide and residue treatment after welding.
  6. Rubber molding and plastic injetction surface cleaning


Cleaning result of laser rust cleaning machine on auto spare parts



Portable Fiber Laser Cleaner Rust Removal Machine 100W Battery Powered 0



 Application of Laser Rust Cleaning Machine for Auto Spare Parts

Portable Fiber Laser Cleaner Rust Removal Machine 100W Battery Powered 1
