Portable Coding And Marking Machine 50W For Metal Fiber Laser Printer

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number D100
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Suitcase and Carton,82*52*54cm,60kg
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Coding And Marking Machine Laser Type Fiber
Print Size 110mm Print Space 190mm
Length The Lines Unlimited Power 50W
Screen 10inch Touch Screen Language Muti - Language
Leave a Message
Product Description

Portable Coding And Marking Machine 50W For Metal Fiber Laser Printer





Application of Coding and Marking Machine:



Handheld Fiber Laser Marking Machine was design for some product which can not online marking, or the place is narrow that normal machine can not reach it. The working object is heavy or bigger product, such as Metal stick, metal block, Truck Tire, Steel Frame, Machinery, Automobile. The machine can fix on trolley and move it to any place need laser marking, it is more convenient and easy for operate.Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.





Main Features of Coding and Marking Machine:



  1.  Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable
  2.  Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
  3.  Friendly operate interface, easy to edit message set parameters for marking.
  4. 100000 hours of zero- maintenance
  5.  Well design and production technology, high stability and less working failure.
  6.  Long lifetime
  7.  Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work

Technical Parameters of Coding and Marking Machine:



1 Product name Laser marking machine
2 Power 50W
3 Laser type Fiber
4 Laser wavelength 1064 nm
5 Air cooling pulse frequency 20 - 100 KHZ
6 Printing size 110 mm x 110 mm
7 Printing speed 12000mm/s
8 Printing depth ≤0.3mm
9 Printing line width 0.01-0.2mm (based on difference material)
10 Min character Size 0.015mm

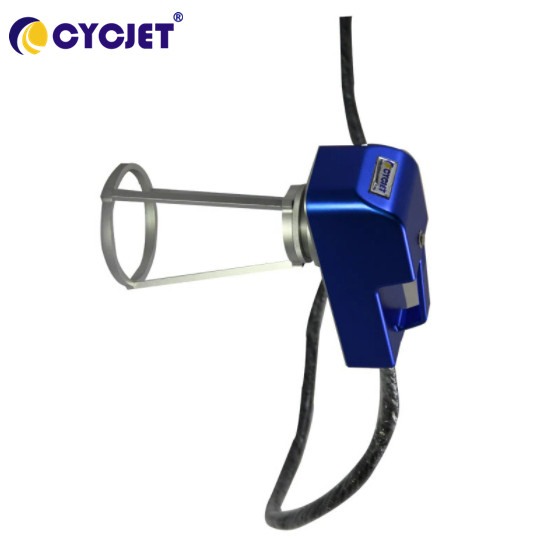

Product Pictures of Coding and Marking Machine:

Portable Coding And Marking Machine 50W For Metal Fiber Laser Printer 0

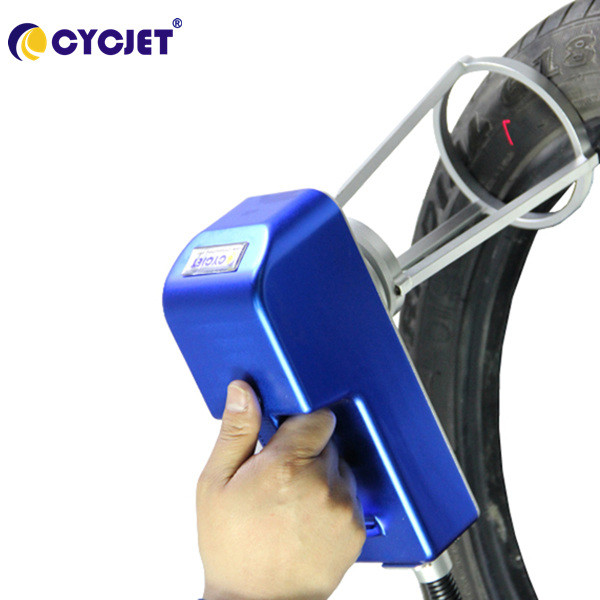

Printing Samples of Coding and Marking Machine:

Portable Coding And Marking Machine 50W For Metal Fiber Laser Printer 1
Portable Coding And Marking Machine 50W For Metal Fiber Laser Printer 2


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
