Mini Fiber Coding And Marking Machine Portable Laser Printing Marking For Ceramics

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number D200
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Suitcase and Carton, 82x52x54cm, 60KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Coding And Marking Machine Type Fiber Laser
Print Height 200mm Focus Distance 190mm
Power 30W Screen 10inch Touch Screen
File Format PLT Power Supply 100-220V 50-60HZ
High Light

30W Mini fiber laser engraving machine

,

200mm Portable fiber laser engraving machine

,

200mm Ceramics fiber laser marking

Leave a Message
Product Description

Mini Fiber Coding And Marking Machine Portable Laser Printing Marking For Ceramics



Introduction of Handheld Coding and Marking Machine:



CYCJET Handheld Laser Printer, ideal for metals, Car & Truck Tyres(Logo, QR Code) plastic, electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing.The QR CODE created by handheld laser, the code should mark deeply so camera easy to read and upload it to database for compare.As a solid laser source, the fiber laser main application is metal marking, metal engraving, metal cutting, metal welding etc. The working status is more stable and lifetime longer than CO2 Laser Printer and UV Laser.





Main Features of Coding and Marking Machine:



  1.  Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable
  2.  Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
  3.  Friendly operate interface, easy to edit message set parameters for marking.
  4.  Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work
  5.  Perfect cooling system, working temperature 0-50℃
  6.  Working State Alarm system

Technical Parameters of Coding and Marking Machine:



1 Product name Laser marking machine
2 Power 30W
3 Type Fiber laser
4 Laser wavelength 1064 nm
5 Cooling way Air cooling
6 Printing size 200 x 200 mm
7 Printing speed 12000mm/s
8 Printing depth ≤0.3mm
9 Printing line width 0.01mm-0.2mm
10 Output power 600W

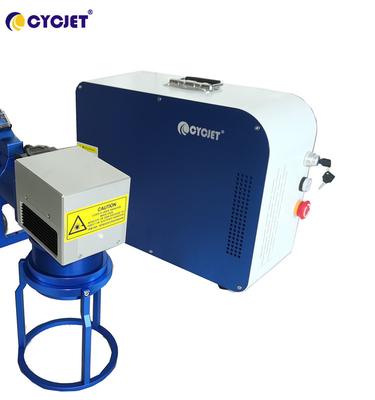

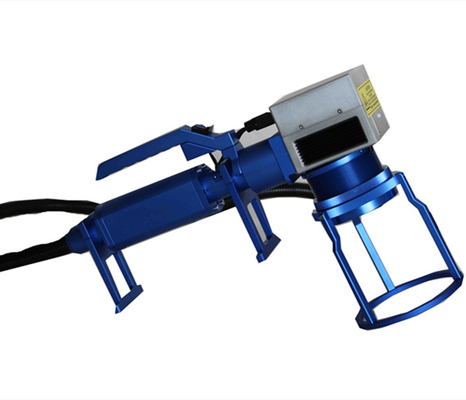

Product Pictures of Coding and Marking Machine:

Mini Fiber Coding And Marking Machine Portable Laser Printing Marking For Ceramics 0


Printing Pictures of Coding and Marking Machine:

Mini Fiber Coding And Marking Machine Portable Laser Printing Marking For Ceramics 1
Mini Fiber Coding And Marking Machine Portable Laser Printing Marking For Ceramics 2


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
