CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE
Model Number CPG450
Minimum Order Quantity 1 Set
Packaging Details Wooden Case, 160x58x53, 95Kg
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Paging Machine CPG450 Paging Machine Dimension 1450X630X850mm
Speed 10-50m/min Or 40-115m/min Two Standard Controller Frequency Conversion Speed Regulator
Materials Stainless Steel, Industrial Section Steel Power Voltage AC220V-50/60HZ(grounding Wire Necessary)
High Light

Cpg 450 Pagination Machine


Plastic Bag Pagination Machine


Friction paper feeding machine

Leave a Message
Product Description



Friction Paging Machine for Cards, bags, labels, boxes, etc.



Place the stacks of paginated objects on the paging head and run through friction, and transfer the paginated objects to the conveyor belt in the form of a single page (single), which is convenient for inkjet printers, laser machines, labeling machines and other related supporting equipment to perform synchronous work, such as Coding and printing of date codes, laser printing of graphic information, labeling of product labels and other automatic supporting facilities, thereby reducing the cumbersome manual paging, giving full play to the high-speed printing advantages of inkjet printers and laser machines, improving printing efficiency and facilitating production operations and management



1. Frequency conversion speed regulation, high-speed automatic paging 60-600 pieces/min

2. High paging speed, high positioning accuracy and high production efficiency

3. Qualified structural design, independent shaft, easy and fast replacement of wearing parts

4. Equipped with manual/automatic function, which is convenient for debugging and production operation

5. Optional accessories: laser pressure roller, static elimination device, receiving hopper, automatic bag receiving machine, etc.

Friction Paging Machine
Model CPG450
Power Voltage AC220V-50/60HZ(grounding wire necessary)
Paging Belt Width 60mm
Paging width 80-400mm
Paging Length 50-320mm
Paging Thickness 0.05-5mm
Speed 10-50m/min or 40-115m/min two standard
Motor Power Lower speed motor 120W or High speed Motor250W optional
Conveyor Width 250mm
Conveyor Length 1000mm
Dimension 1450X630X850mm
Conveyor direction Single direction
Controller Frequency conversion speed regulator
Power Unit Single phase asynchronous gear reducer or three-phase asynchronous motor
Power Protection 6A AC integral socket with fuse
Appearance Stainless Steel Polishing
Materials Stainless Steel, Industrial section steel
Floor Stand Adjustable base

CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag 0


What is used for?

This paging system can automatically separate stacks of bags and convey single piece onto the conveyor belt so as to facilitate label applicator to stick each sticker onto bags and thus reduce the trifles of manual paging to improve labeling efficiency.

This is a feeder and dispenser system which feeds labels, pouch, cards, plastic bags, sheet paper or other flat objects at high speed on the conveyor. It automatically separate/split/divide stacks of pouches into single piece and deliver to the conveyor belt so as to facilitate ink-jet printer, laser coding machine to spray batch number, logo, anti-fake mark, pattern, QR, and bar code on packages. It also is good auxiliary equipment for label applicator to finish accuracy and high efficiency labeling working.


1. Multipurpose machine which can be matched with ink jet printer, laser coding machine, labeling machine or vision camera system.

2. Reduce the trifles and of manual paging and feeding, make full use of the advantages of accuracy and high-speed spray printing and sticker labeling.

3. Can be equipped with the function of intelligent counting and automatic stop to facilitate production management.

4. Reasonable structural design can be easier to replace damageable parts.

How does it work?

Using the most advanced paging technology, bunch or stack of products are placed in the feeding tray in this machine and get fed by a rotating friction wheel, the bottom bag will get fed first. The fed bag then moved forward by chains & rubber belt from one side to the other end side.

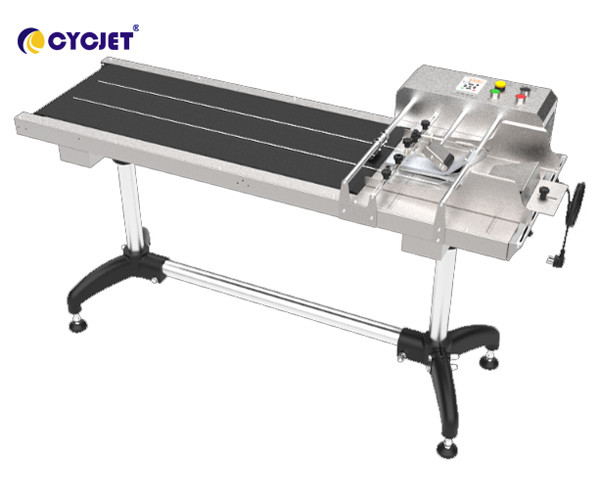

CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag 1

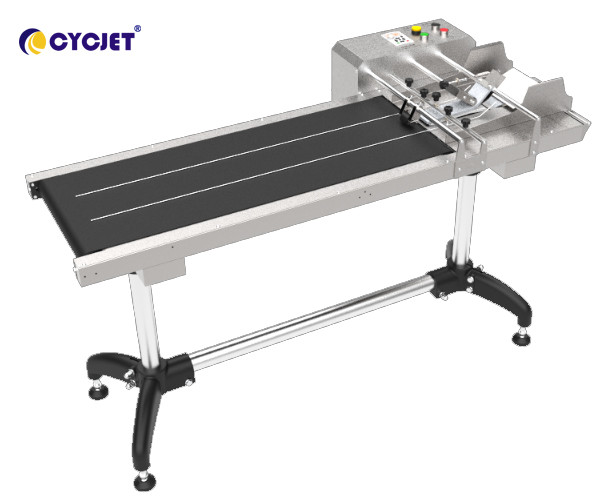

CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag 2

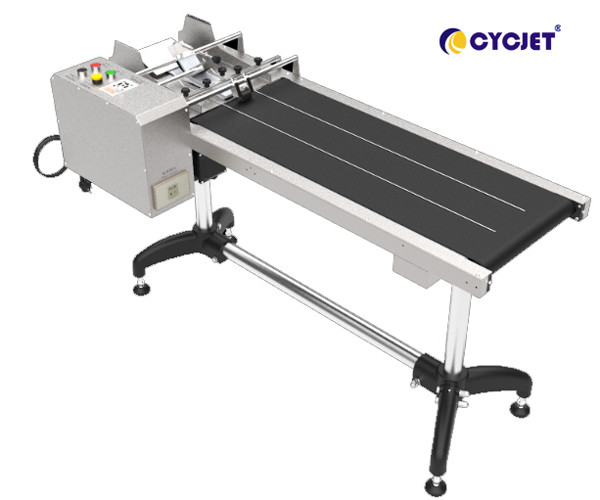

CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag 3

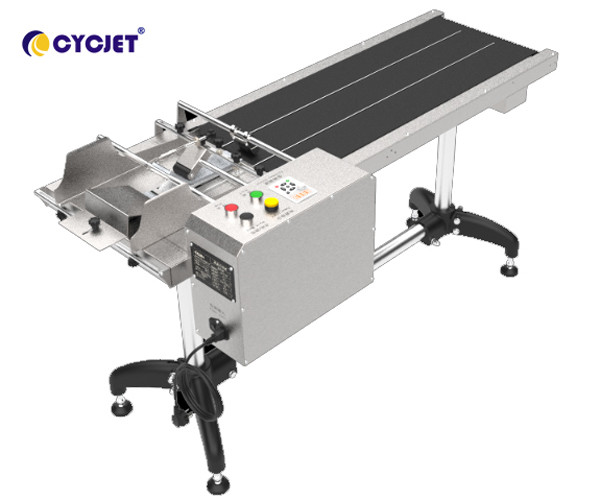

CPG 450 Pagination Machine Friction Paper Feeding Machine For Plastic Bag 4
