CPG 530 Paper Card Box Paging Machine Baffle Sheet Feeding Machine

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE
Model Number CPG530
Minimum Order Quantity 1 Set
Packaging Details Wooden Case, 160x58x53, 95Kg
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PG530 Baffle-Type Paging Machine Power Voltage AC220V-50/60HZ(grounding Wire Necessary)
Paging Belt Width 60mm Paging Width 100-450mm
Paging Length 60-350mm Paging Thickness 1-5mm
Speed 40-100m/min Dimension 1650X610X1040mm
High Light

CPG 530 Paging Machine

,

Paper Card Box Paging Machine

,

Baffle sheet feeding machine

Leave a Message
Product Description

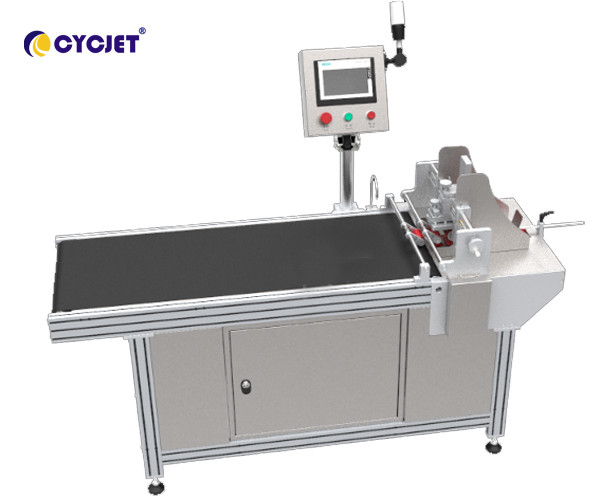

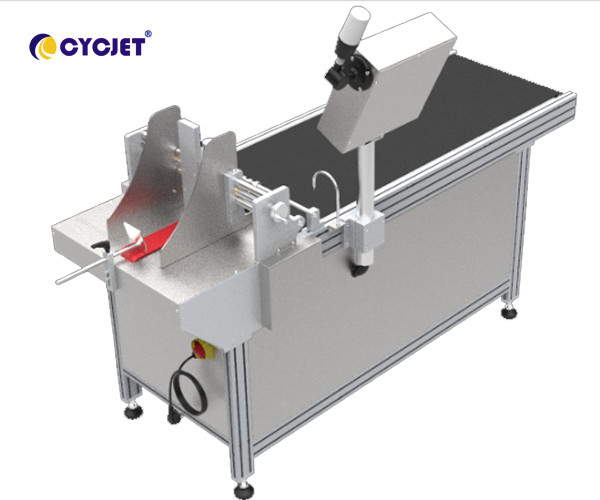

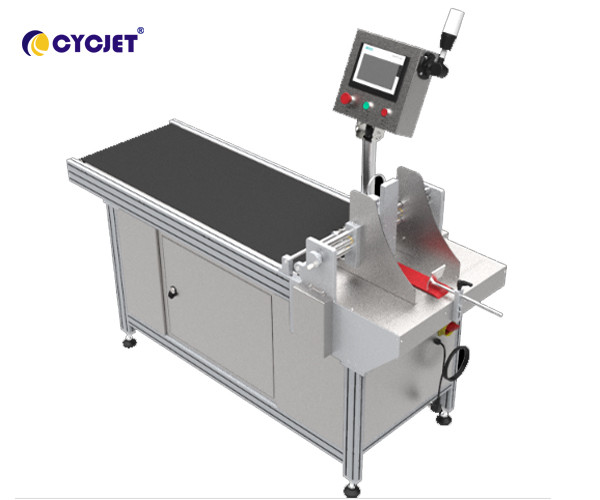

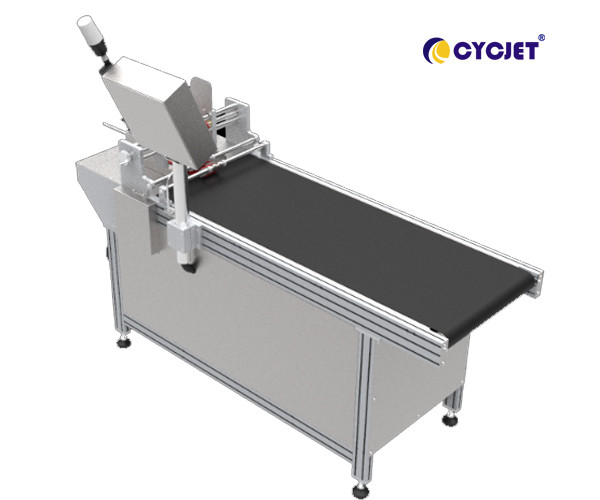

CPG530 Baffle-Type Paging Machine for Paper Card Box Sheet Feeding Machine



Application:

Carton, paper card, etc.



Usage:

Place the stacks of paging objects on the paging head and pass through the guillotine head, and transfer the paging objects to the conveyor belt in the form of a single page (single), which is convenient for inkjet printers, laser machines, labeling machines and other related equipment to perform synchronous work. Such as inkjet printing date code, laser printing graphic information, labeling product labels and other automatic supporting facilities, thereby reducing the cumbersome manual paging, giving full play to the high-speed printing advantages of inkjet printers and laser machines to improve printing efficiency and facilitate production. Operation and Management.

CPG530 Baffle-Type Paging Machine
Model CPG530
Power Voltage AC220V-50/60HZ(grounding wire necessary)
Paging Belt Width 60mm
Paging width 100-450mm
Paging Length 60-350mm
Paging Thickness 1-5mm
Speed 40-100m/min
Motor Power Lower speed motor 120W or High speed Motor200W optional
Conveyor Width 450mm
Conveyor Length 1000mm
Dimension 1650X610X1040mm
Conveyor direction Single direction
Controller Double Frequency Conversion Control
Power Unit Three-Phase asynchronous motor
Power Protection 6A AC integral socket with fuse
Appearance Stainless Steel Polishing
Materials Stainless Steel, Industrial section steel
Floor Stand Adjustable base

CPG 530 Paper Card Box Paging Machine Baffle Sheet Feeding Machine 0

FAQ:

What is used for?

This paging system can automatically separate stacks of bags and convey single piece onto the conveyor belt so as to facilitate label applicator to stick each sticker onto bags and thus reduce the trifles of manual paging to improve labeling efficiency.

This is a feeder and dispenser system which feeds labels, pouch, cards, plastic bags, sheet paper or other flat objects at high speed on the conveyor. It automatically separate/split/divide stacks of pouches into single piece and deliver to the conveyor belt so as to facilitate ink-jet printer, laser coding machine to spray batch number, logo, anti-fake mark, pattern, QR, and bar code on packages. It also is good auxiliary equipment for label applicator to finish accuracy and high efficiency labeling working.

Features:

1. Multipurpose machine which can be matched with ink jet printer, laser coding machine, labeling machine or vision camera system.

2. Reduce the trifles and of manual paging and feeding, make full use of the advantages of accuracy and high-speed spray printing and sticker labeling.

3. Can be equipped with the function of intelligent counting and automatic stop to facilitate production management.

4. Reasonable structural design can be easier to replace damageable parts.

How does it work?

Using the most advanced paging technology, bunch or stack of products are placed in the feeding tray in this machine and get fed by a rotating friction wheel, the bottom bag will get fed first. The fed bag then moved forward by chains & rubber belt from one side to the other end side.
