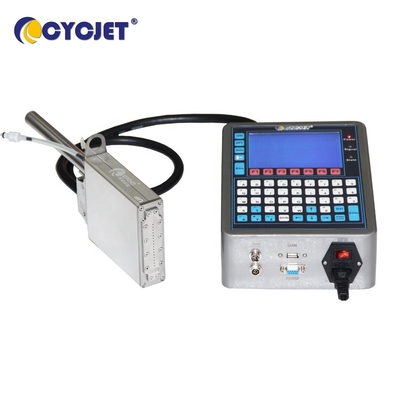

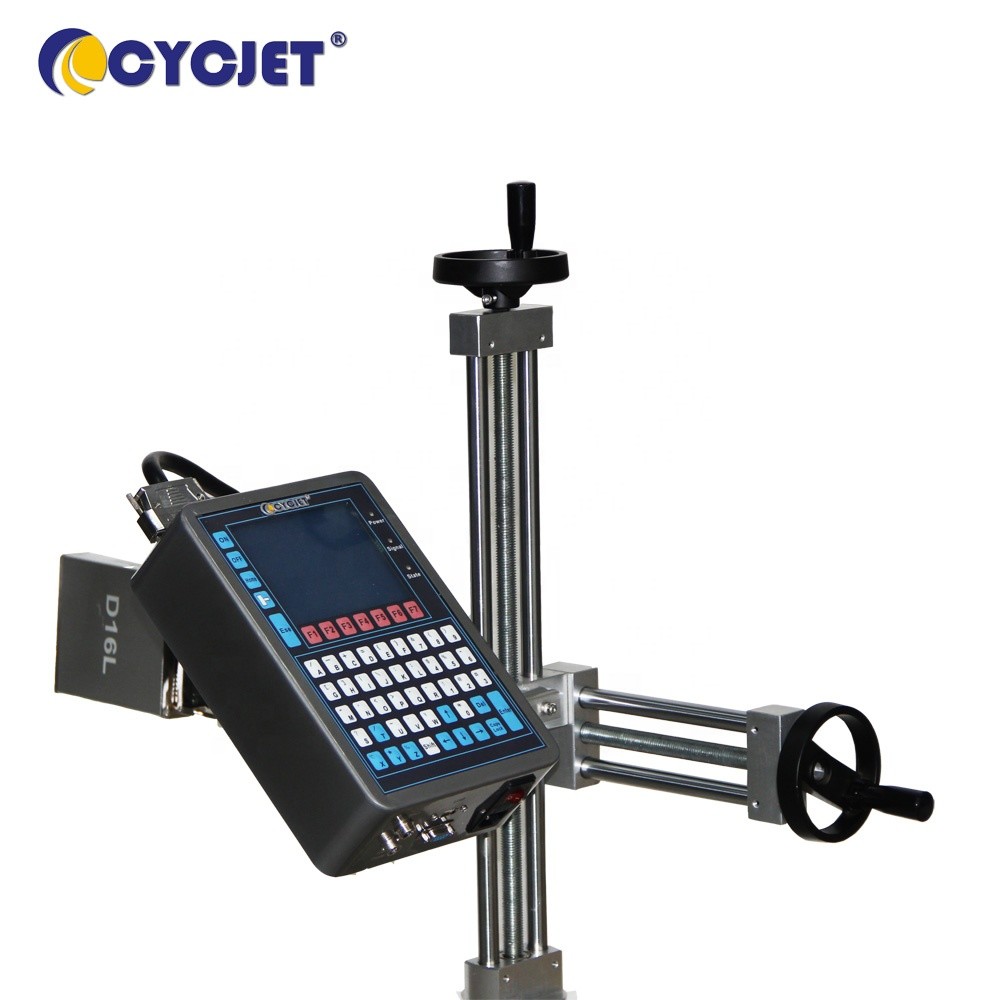

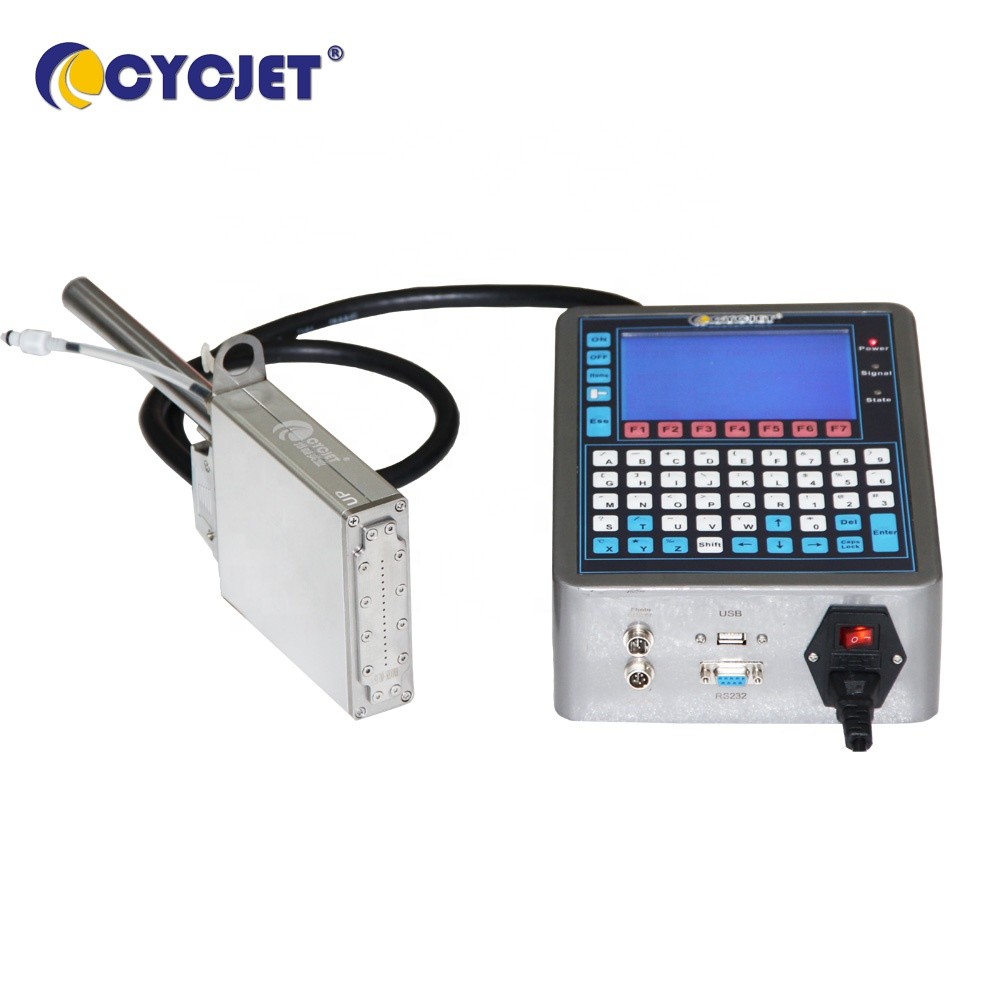

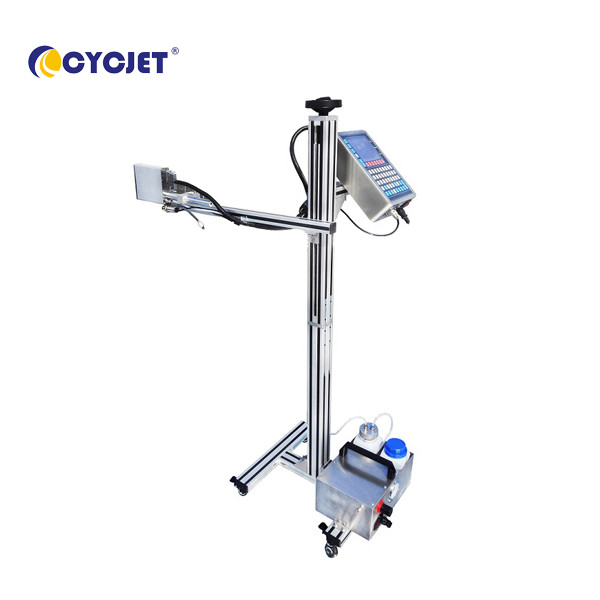

CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine

  • CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine
  • CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine
  • CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine
Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS
Model Number D16L-2
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Carton, 43x43x33cm, 13KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Large Character Inkjet Printer Warranty One Year
Print Dimension 25-60mm Application Steel Structure, Building Material, Steel Pipe
Print Speed 80m/min Print Distance 8-10mm
Highlight

CYCJET DOD inkjet batch code printer

,

D16L-2 inkjet batch code printer

,

CYCJET inkjet date coder machine
Leave a Message
Product Description

CYCJET DOD Double-Head Large Character Inkjet Printer D16L-2 Drop On Demand Inkjet Coding Machine





Description of CYCJET Large Character Inkjet Printer:



CYCJET D Serial DOD large character inkjet printer is well-known in the construction industry, packaging industry, and steel structure industry. Its special printhead system can drive a max of 4 heads by one controller and can supply 7 dots, 16 dots, and 32 dots heads.



Available are customized data cables and ink pipes. Additionally, a quick clean feature and clog prevention feature keeps the printer fit for prolonged use in harsh environments. More importantly, the ink system of this inkjet coding machine contains a built-in alert system.



It will alert users when ink is running low and may motivate them to make sure the printer keeps printing for a long time. The concrete goods, pipes, cartons, wood, plastic, aluminum foils, cardboard boxes, stones, etc. may all be printed on by the large character inkjet coding machine.



302x240STN screen makes complete printing contents available for review. It not only can print logos, batch numbers, serial numbers, shift numbers, and special marks but also can print count numbers, available to set starting numbers and end numbers.





Technical Parameters of CYCJET Large Character Inkjet Printer:



Print Height



16 dots, Max 120mm font height


Print Spacing



8—10mm





Basic configuration



Printing max two lines of numbers, or English, all the national standard database of Chinese characters and English letters, self- simple graphics, the machine without external gas source, free warranty for one year.


Print Speed



80m/min


Software Function



Real-time clock date, product counting, frequency


Operation Function



English operation system, Delay in printing, the font width, font height, orientation, self-cleaning, and sensor settings.


Print Content



Real Date, Real-time, Letter, Shift group, Serial number, Batch number, and Lot number


Print Direction



Upward printing, downward printing, side printing (360°direction

printing)


Operator Interfaces



Image-style & Chinese or English menu


Memory Function



More than 60pcs texts can be storage





Ink Color



Black, Red, Yellow, Blue, white


Protection level



Not suitable for high dust, high humidity working environment


Powder



AC220V±10%, 50 -60HZ, 5 W;



Humidity Range

Temperature Range



10-90% Non-condensing

5-40°C


Others



No need to connect external compressed air, and no need for thinner (i.e.

solvent)







Printing Effects of CYCJET Large Character Inkjet Printer:



CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine 0

CYCJET Double Head Inkjet Batch Code Printer D16L-2 Inkjet Date Coder Machine 1





FAQ:



Q1. What this large character inkjet printer can print?
A: It can print mfg&exp date, batch number, text, logo, etc.

Q2. What materials this large character inkjet printer can print?
A: It can print all materials, like paper, cartons, plastic, metal, wood, steel, pipe, bottle, etc.

Q3. Are you a factory or a trading company?
A: We have our own factory and we can offer OEM production according to your demand.

Q4. Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and for different uses.

Q5. How can I know your machine works well?
A: Before delivery, we tested every inkjet printer machine and adjusted it to the best condition. If you have special production conditions, we could also adjust the machine for you.
