CVI 460-VD Cartons Visual Inspection Machine Inkjet Printer Laser Marking Machine

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CVI460-VD
Minimum Order Quantity 1 Set
Packaging Details Wooden Case
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name CVI450-VD Visual Inspection System For Coding Machine Power Consumption 280W
Paging Belt Width 40mm Paging Width 80-380mm
Paging Length 50-320mm Paging Thickness 1-5mm
Speed 20-80m/min Paging Offset ±0.5-2mm(depend On Products)
Air Source 0.4Mpa Dimension 2520X530X1420mm
Conveyor Length 1450mm Conveyor Width 350mm
High Light

cartons Visual Inspection Machine


Laser Marking Visual Inspection Machine


Inkjet Printer visual inspection system

Leave a Message
Product Description

CVI460-VD Visual Inspection System For Inkjet Printer Vision Inspection For Laser Marking Machine


Paper boxes, paper cards, cartons, etc.



The finished product is formed into a single sheet through the page header and sent to the lower station for coding, thereby reducing manual labor and greatly improving production efficiency and coding accuracy. Marking equipment such as small character inkjet printers, laser machines, UV, high-resolution inkjet printers and other supporting equipment malfunctioned during work, resulting in leaks and leaks, and the speed of rice noodles was very fast. Using visual inspection device to replace manual inspection greatly improves production efficiency. The visual inspection has three functions: the detection function of the number of characters, the OCR detection function of the characters, the detection function of scanning and reading QR codes and barcodes, the detection function of the number of characters is for the detection of missing codes and missing codes, and the character OCR detection function It is for character stroke typo detection


Control system function software features:

All Chinese prompt information, simple operation, comprehensive functions, easy to use

With power-off protection function, parameter data is permanently saved

You can set parameters, choose a variety of parameters, and switch at will

With alarm and prompt function


Features of the Vision System:

Applicable to: ink coding, laser coding detection, high-resolution coding detection and other coding equipment coding detection, it can detect whether the coding characters are more sprayed, less sprayed, missing spraying, sprayed crookedly, and the coding exceeds the area; bar code detect

Product running posture: stable, no obvious deviation, uniform coding position

Detection accuracy: more than 1/2 of a single character is missing, the detection rate is ≥99.99%, and the rejection rate is ≥99.99%

Automatic rejection function: The rejection rate of the unqualified products detected by the system is ≥99.99%, and the rejection position is uniform and accurate. The system can set if several items are rejected continuously, the system will continuously alarm to remind the operator to find out the reason.

CVI450-VD Visual Inspection System
Model CVI450-VD
Power Voltage AC220V-50/60HZ(grounding wire necessary)
Power Consumption 280W
Paging Belt Width 40mm
Paging width 80-380mm
Paging Length 50-320mm
Paging Thickness 1-5mm
Speed 20-80m/min
Conveyor Width 350mm
Conveyor Length 1450mm
Dimension 2520X530X1420mm
Conveyor direction Single direction
Paging offset ±0.5-2mm(depend on products)
Working Environment Temperature:-10-40℃, Relative Humidity:75%
Air Source 0.4Mpa
Unqualified Products Handle Automatic Remove
Reverse Board Remove After detecting unqualified products, remove them according to the delay time
Conveyor Belt Color Blue

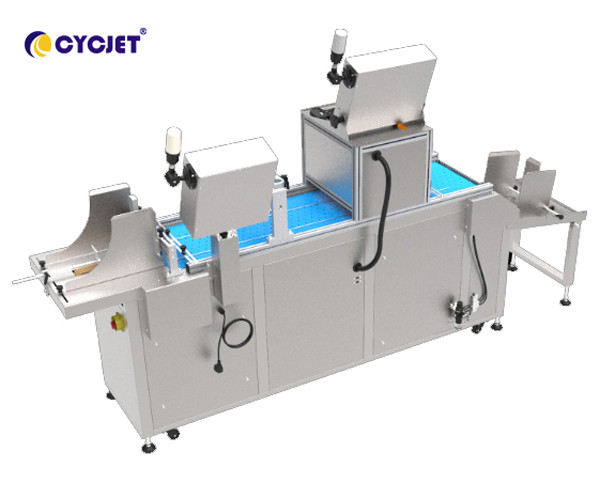

CVI 460-VD Cartons Visual Inspection Machine Inkjet Printer Laser Marking Machine 0


What is used for?

This paging system can automatically separate stacks of bags and convey single piece onto the conveyor belt so as to facilitate label applicator to stick each sticker onto bags and thus reduce the trifles of manual paging to improve labeling efficiency.

This is a feeder and dispenser system which feeds labels, pouch, cards, plastic bags, sheet paper or other flat objects at high speed on the conveyor. It automatically separate/split/divide stacks of pouches into single piece and deliver to the conveyor belt so as to facilitate ink-jet printer, laser coding machine to spray batch number, logo, anti-fake mark, pattern, QR, and bar code on packages. It also is good auxiliary equipment for label applicator to finish accuracy and high efficiency labeling working.


1. Multipurpose machine which can be matched with ink jet printer, laser coding machine, labeling machine or vision camera system.

2. Reduce the trifles and of manual paging and feeding, make full use of the advantages of accuracy and high-speed spray printing and sticker labeling.

3. Can be equipped with the function of intelligent counting and automatic stop to facilitate production management.

4. Reasonable structural design can be easier to replace damageable parts.

How does it work?

Using the most advanced paging technology, bunch or stack of products are placed in the feeding tray in this machine and get fed by a rotating friction wheel, the bottom bag will get fed first. The fed bag then moved forward by chains & rubber belt from one side to the other end side.
