Automatic Laser Cutting Machine 1070 Nm 1000w Engraving

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLU 1000
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Suitcase and Carton,370X228X250 cm,1200kg
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Laser Cutting Machine Laser Type Fiber
Laser Power 1000W Laser Wavelength 1070 Nm
Beam Quality <0.373mrad Cutting Area 3000×1500mm
Position Accuracy ≤±0.02mm/m Reposition Accuracy ≤±0.02mm/m
High Light

Automatic Laser Cutting Machine

,

1070 nm Laser Cutting Machine

,

1000w Laser Cut Engraving Machine

Leave a Message
Product Description

Automatic High Precision Laser Cut Engraving Machine 1000w Laser Cutting


Application of Laser Cutting Machine:


The laser cutting machine realizes automatic, fine and fast cutting of metal materials by outputting a high energy density laser beam and controlling the mechanical system with powerful computer numerical control software. It is a high-tech equipment integrating laser technology, numerical control technology and precision machinery technology.
No matter what type of sheet you need to process. Our product portfolio can provide you with targeted advice and find the best and most economical solution for you.



Laser Cutting Machine Main Features:


  •  Special wavelength (1070nm), with the unique ability to cut high-reflective materials such as aluminum, copper, brass, etc.

  •  The laser electro-optical conversion rate is about 25%, which is much higher than CO2 (<10%), which greatly reduces the power loss

  •  Laser is transmitted through optical fiber, basically no transmission loss

  •  Modular design, "plug and play", compact size, easy installation, no need for laser and beam transmission system maintenance

  •  Long service life,the service life of the pump source> 100,000 hours



Technical Parameters of Laser Cutting Machine:


1 Product name Laser cutting machine
2 Power 1000W
3 Laser type Fiber
4 Laser wavelength 1070 nm
5

Cutting speed

≤30m/min

6

Maximum load of worktable

1600KG

7

Power supply

380V 50Hz

8

Equipment power

3KW

9

Protection level

IP54

10

Output power

3000W
11

Positioning accuracy

≤±0.02mm/m

12

Repositioning accuracy

≤±0.02mm/m

13

Cutting range

3000×1500mm

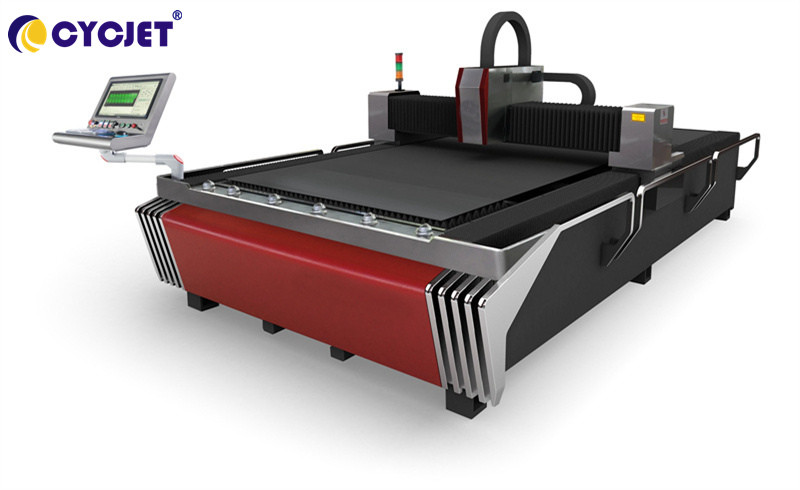

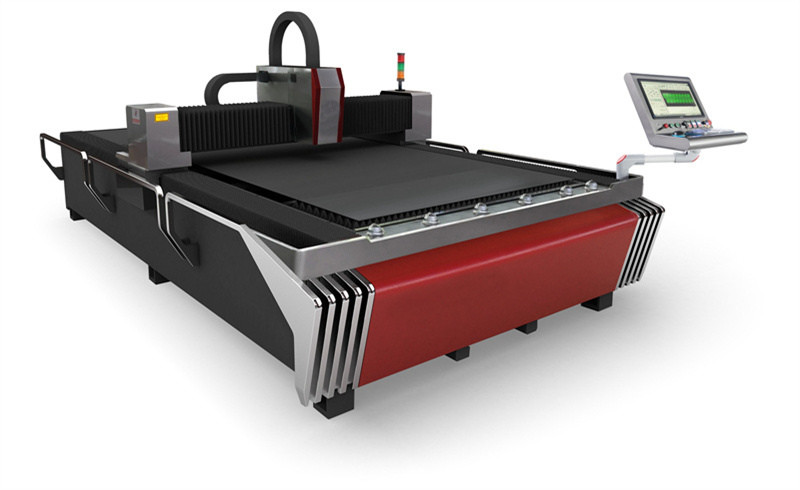

Product Pictures:

Automatic Laser Cutting Machine 1070 Nm 1000w Engraving 0Automatic Laser Cutting Machine 1070 Nm 1000w Engraving 1Automatic Laser Cutting Machine 1070 Nm 1000w Engraving 2


Cutting Pictures of Laser Cutting Machine:

Automatic Laser Cutting Machine 1070 Nm 1000w Engraving 3


Company Pictures:

Automatic Laser Cutting Machine 1070 Nm 1000w Engraving 4



FAQ:



Q1 :How long is the warranty time?

The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.



Q2 :What payment method can I use?

We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.



Q3 :Can I pay cash on delivery?

No,you need to pay it first ,then I will arrange the shipment for you.



Q4 :How long can I receive the goods?

When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days



Q5:Why should you I from you not from other suppliers?

We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
