3000w Fiber Laser Cutting Machine
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CYCJET |
| Certification | CE, SGS, FDA |
| Model Number | CLU 3000 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiated |
| Packaging Details | Suitcase and Carton,370X228X250 cm,2400kg |
| Delivery Time | 10-12 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Laser Cutting Machine | Laser Device | Fiber Laser |
|---|---|---|---|
| Power | 3000W | Laser Wavelength | 1070 Nm |
| Beam Quality | ＜0.373mrad | Working Area | 3000×1500mm |
| Position Accuracy | ≤±0.02mm/m | Reposition Accuracy | ≤±0.02mm/m |
| Highlight | 1070 nm Fiber Laser Cutting Machine,3000w Fiber Laser Cutting Machine,Automobile industrial laser cutter |
||
Product Description
High Efficiency Fiber 3000w Laser Cutting Machine For Automobile Industry
Application of Laser Cutting Machine:
Laser cutting machine is most used in automotive, mold, die, tool, jewelry and medical industries. It also can be used to make parts for medical devices, computers, and electronics, etc. Materials that are difficult or impossible to cut using other methods are ideal for laser cutting.
Laser Cutting Machine Main Features:
- Special wavelength (1070nm), with the unique ability to cut high-reflective materials such as aluminum, copper, brass, etc.
- The laser electro-optical conversion rate is about 25%, which is much higher than CO2 (<10%), which greatly reduces the power loss
- Laser is transmitted through optical fiber, basically no transmission loss
- Modular design, "plug and play", compact size, easy installation, no need for laser and beam transmission system maintenance
- Long service life,the service life of the pump source> 100,000 hours
Technical Parameters of Laser Cutting Machine:
| 1 | Product name | Laser cutting machine |
| 2 | Power | 3000W |
| 3 | Laser type | Fiber laser |
| 4 | Laser wavelength | 1070 nm |
| 5 |
Cutting speed |
≤30m/min |
| 6 |
Maximum load of worktable |
1600KG |
| 7 |
Power supply rated parameters |
380V 50Hz |
| 8 |
Equipment power |
3KW |
| 9 |
Protection level |
IP54 |
| 10 |
Output power |
6000W |
| 11 |
Axial positioning accuracy of worktable |
≤±0.02mm/m |
| 12 |
Repeated positioning accuracy of worktable |
≤±0.02mm/m |
| 13 |
Effective cutting range |
3000×1500mm |

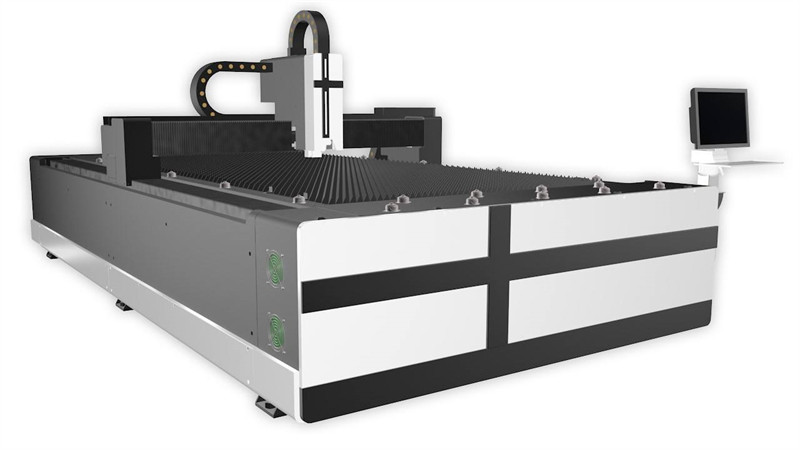

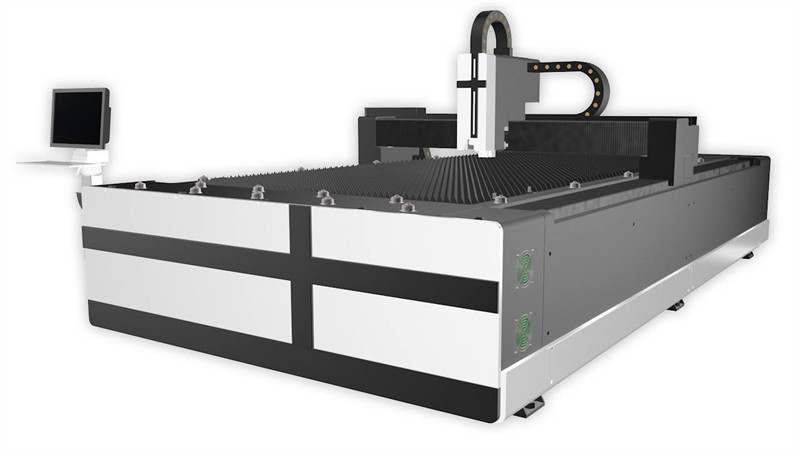

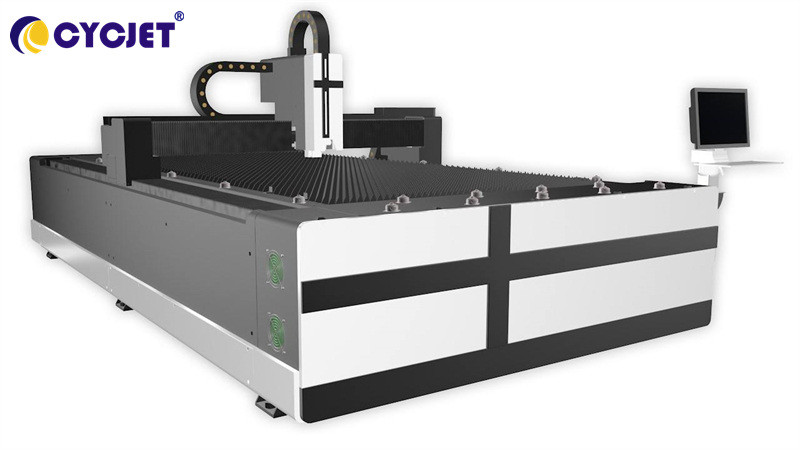

Product Pictures of Laser Cutting Machine:
Cutting Pictures of Laser Cutting Machine:
Company Pictures:
FAQ:
Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.
Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
