Portable Handheld Ss Laser Welding Machine 2000W Fiber Laser Welder

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLW2000
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case, 147x66x67cm, 135KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Portable Handheld Laser Welding Machine 2000W Fiber Laser Welder Capacity 2000W(Can Customized)
Model CLW2000 Cooling Water Cooling
Power Supply 220V/50-60HZ Power Consumption 5600W
Net Weight 260kg Solder Wire Size 0.2-2mm
High Light

Portable Handheld Laser Welding Machine

,

ss laser welding machine

,

2000w laser welder

Leave a Message
Product Description

Portable Handheld Laser Welding Machine 2000W Fiber Laser Welder





Description:



Portable Handheld 2000W Laser Welding Machine. The 2000W handheld laser welding machine is a simple and easy-to-operate portable device. It is also a new type of precision laser welding machine, suitable for various environments including outdoor welding. The hand-held laser welding machine replaces the traditional fixed welding torch optical path, which is more flexible and convenient, realizes the outdoor long-distance welding of the laser, and overcomes the limitation of the working space; The external handheld welding head is equipped with 5 meters of imported optical fiber, which is flexible and convenient for outdoor welding. The workpiece can be welded at any angle, the dual optical paths are intelligently switched, and the time-sharing energy is evenly distributed. It can also be easily welded for polygonal materials. Laser welding machine is suitable for all kinds of messy welding and spot welding of equipment.





Main Characters:



  1. Fast speed, large depth and small deformation.
  2. It can weld hard-to-reach parts and perform non-contact long-distance welding with great flexibility.
  3. With a light-emitting safety control box, it can ensure the safe production of the laser during the welding process.
  4. Professional laser welding software has processing functions such as continuous light output and waveform adjustable light output, which can realize high-speed and precise welding functions.
  5. Ultra-low operating costs, the laser consumes only 1~1.5 degrees per hour; it can weld various metal sheets.



Technical Parameters:


1 Frame Material ALUM & Steel.
2 Working Mode Continuous/Pulse
3 Power ≥2000W
4 Cooling Water Cooling
5 Power Supply 220V/50-60HZ
6 Power Consumption 5600W
7 Net Weight 260kg
8 Laser Wavelength 1080nm
9 Welding Thickness Carbon Steel (C235) 0.5-3.8mm
10 Welding Thickness Stainless Steel (304) 0.5-3.8mm
11 Welding Thickness Galvanized sheet 0.5-3.5mm
12 Output Stability 3%





Products Picture:

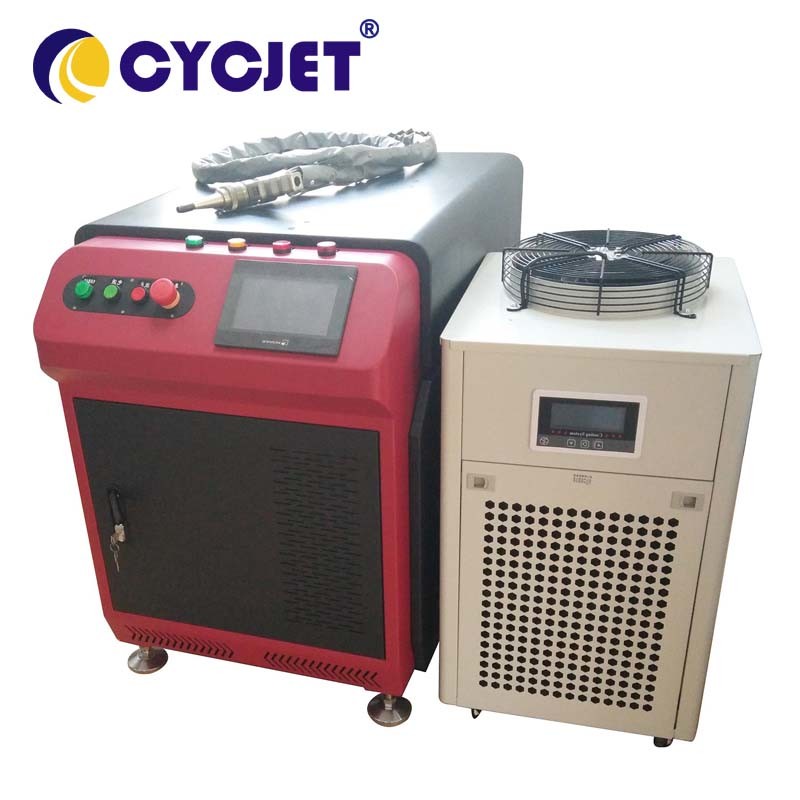

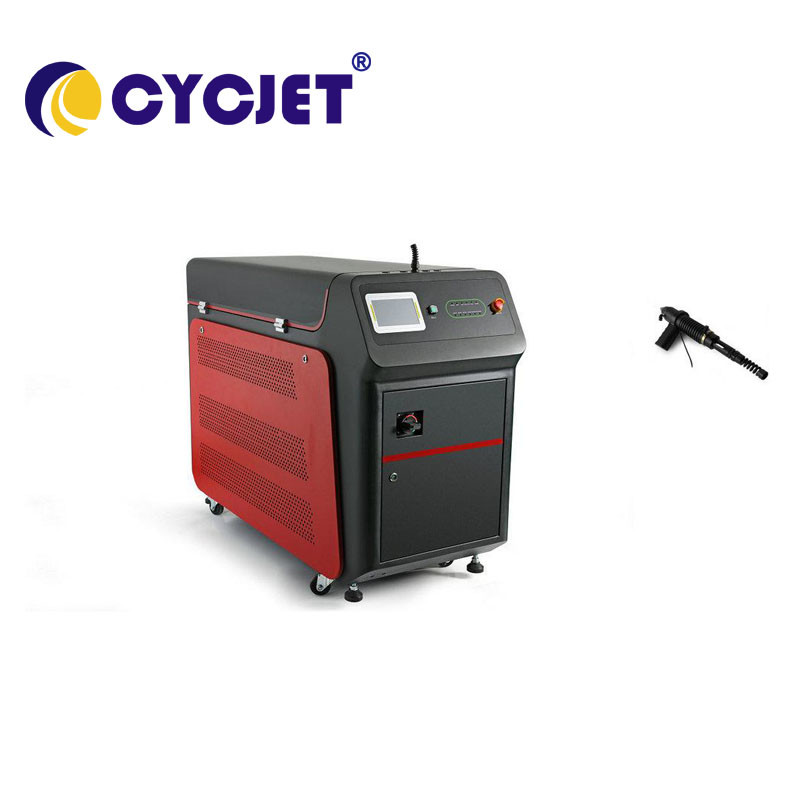

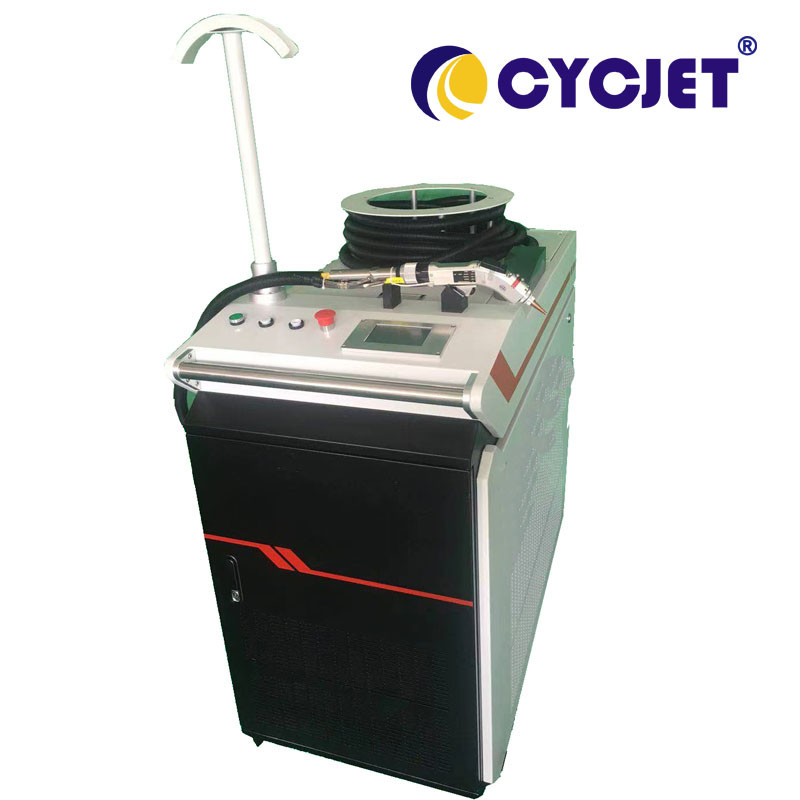

Portable Handheld Ss Laser Welding Machine 2000W Fiber Laser Welder 0





Application:

Portable Handheld Ss Laser Welding Machine 2000W Fiber Laser Welder 1



Portable Handheld Ss Laser Welding Machine 2000W Fiber Laser Welder 2





Company Show:



Portable Handheld Ss Laser Welding Machine 2000W Fiber Laser Welder 3





 FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
