Portable 2000w Laser Welder Stainless Steel Fiber Laser Welder

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLW2000
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case, 147x66x67cm, 135KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Handheld Portable Laser Welding Machine 2000W Fiber Laser Welder Capacity 2000W(Can Customized)
Model CLW2000 Working Mode Continuous/Pulse
Power Supply 220V/50-60HZ Power Consumption 5600W
Warranty 1 Year Package Wooden Case
High Light

Portable 2000w laser welder

,

Handheld 2000w laser welder

,

Stainless Steel Fiber Laser Welder

Leave a Message
Product Description

New Type Handheld Laser Welding Machine 2000W In Stainless Steel





Description:



Yuchang Industrial's portable small laser welding machine breaks through the limitations of workpiece shape and processing environment: small solder joints, small heat affected area; no need to set up a welding table, small footprint, flexible processing, fast welding speed, and can be moved for long-distance operations , not limited by environmental space. Low maintenance cost: Hand-held laser welding equipment can complete welding operations as long as it is equipped with a portable laser welding head. The replacement cost of accessories is low. If you do not know how to replace it, you can get it directly from the manufacturer for maintenance, without worrying about transportation and after-sales costs. Cost-effective: The manual hand-held laser welding machine can not only perform hand-held laser welding operations, but also engage in high-precision welding and repairing of molds through the later erection platform. It is the preferred cost-effective welding production equipment for more small-scale manufacturers.



Main Characters:



  1. Micro welding is possible. After the laser beam is focused, a small spot can be obtained, and it can be precisely positioned, which can be applied to the group welding of micro and small workpieces in mass automatic production.
  2. It can weld hard-to-reach parts and perform non-contact long-distance welding with great flexibility.
  3. A wide range of weldable materials can be used, and various dissimilar materials can also be bonded to each other.
  4. Two metals with different physical properties (such as different resistances) can be welded.
  5. Easy to automate high-speed welding and can also be digitally or computer controlled.



Technical Parameters:


1 Frame Material ALUM & Steel.
2 Working Mode Continuous/Pulse
3 Power ≥2000W
4 Cooling Water Cooling
5 Power Supply 220V/50-60HZ
6 Power Consumption 5600W
7 Net Weight 260kg
8 Laser Wavelength 1080nm
9 Welding Thickness Carbon Steel (C235) 0.5-3.8mm
10 Welding Thickness Stainless Steel (304) 0.5-3.8mm
11 Welding Thickness Galvanized sheet 0.5-3.5mm
12 Output Stability 3%





Products Picture:

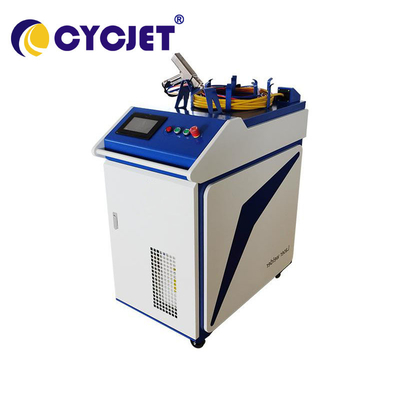

Portable 2000w Laser Welder Stainless Steel Fiber Laser Welder 0





Application:

Portable 2000w Laser Welder Stainless Steel Fiber Laser Welder 1



Portable 2000w Laser Welder Stainless Steel Fiber Laser Welder 2





Company Show:



Portable 2000w Laser Welder Stainless Steel Fiber Laser Welder 3





 FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
