Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number LF20
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Precision Portable LF20 Fiber Laser Marking Machine For Steel Sheet Mark Laser Device Fiber Laser Source
Print Length Limited Power 20W
Language Chinese English (available To Customized) Focus Distance Focus 165mm
Operating System LINUX Based With High Speed Marking Software Print Size Standard Character Height 110mm
Package Wooden Case Warranty 1 Year
High Light

Portable Fiber Laser Marking Machine

,

LF20 Fiber Laser Marking Machine

,

Fiber Laser Marking Machine High Precision

Leave a Message
Product Description

High Precision Portable LF20 Fiber Laser Marking Machine For Steel Sheet Mark





Introduction of LF20 Laser Marking Machine:



High Precision Portable LF20 Fiber Laser Marking Machine For Steel Sheet Mark, which is the LF series laser marking products developed by Shanghai Yuchang Industrial Company Limited. LF20 fiber laser printer adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. What’s more LF20 fiber laser printer adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.





Main Features:



1.Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.

2.Processing speed is 2 to 3 times the traditional laser marking machine.

3.Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption

4.Bar code, qr code, graphics, text rules and irregular marking serial number, etc.

5.Smart Operation System, long lifetime, zero maintenance and zero running cost.



Technical Parameters:



1 Product name LF20 Fiber Laser Marking Machine
2 Power 20W
3 Laser type Fiber laser
4 Laser wavelength 1064 nm
5 Cooling way Air cooling
6 Printing range Standard 110mm×110mm
7 Printing speed ≤7000mm/s
8 Marking line type Dot matrix, bold, vector all in one
9 Printing line width 0.012mm (based on difference material)
10 File format PLT
11 Typeface Chinese  English (available to customized)
12 Net weight 40kg




Product Pictures:

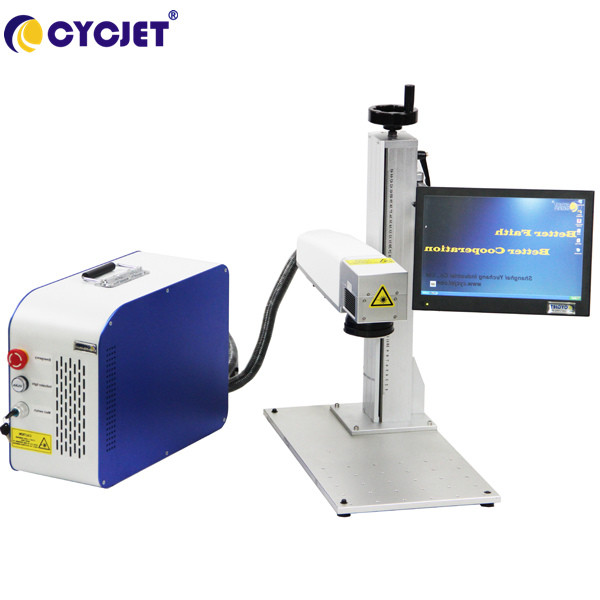

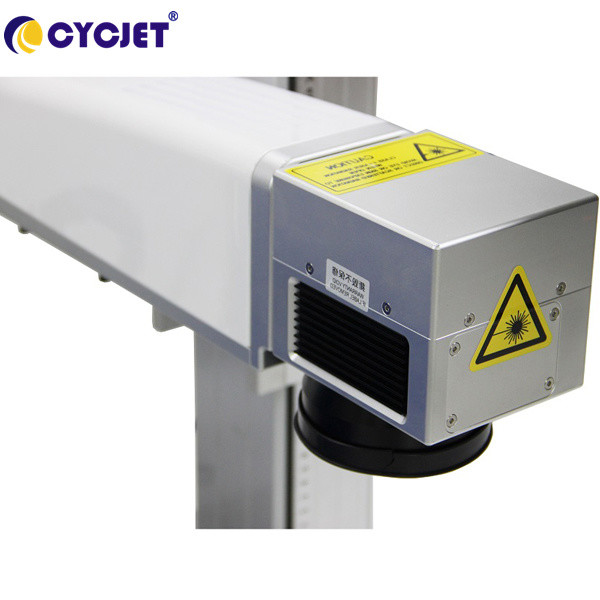

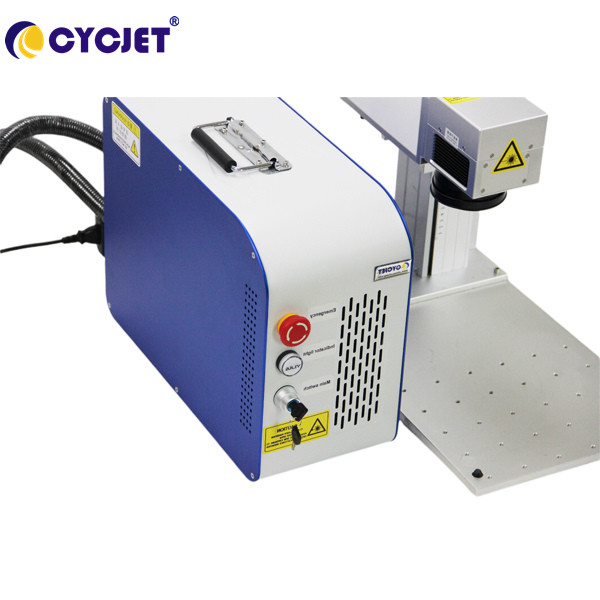

Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet 0


Printing Samples:

Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet 1

Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet 2

Company Show:

Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet 3

Portable LF20 Fiber Laser Marking Machine High Precision For Steel Sheet 4


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
