Desktop 30W Fiber Laser Coding And Marking Machine For Metal Product Engraving

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number LF30
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Desktop 30W Fiber Laser Coding And Marking Machine For Metal Product Engraving Power 30W
Laser Device Fiber Laser Source Mark Length Unlimited
Mark Height Standard Character Height 110mm Operating System LINUX Based With High Speed Marking Software
High Light

Coding And Marking Machine Fiber Laser

,

Desktop 30W Coding And Marking Machine

,

Metal Engraving Coding And Marking Machine

Leave a Message
Product Description

Desktop 30W Fiber Laser Coding And Marking Machine For Metal Product Engraving





Introduction of LF30Coding and Marking Machine:



High Performance Desktop Laser Marking Machine LF30 Fiber Laser Printer, which is the LF series laser marking products developed by Shanghai Yuchang Industrial Company Limited. LF30 fiber laser printer adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface.



What's more LF30 fiber laser marking machine galvanometer adopts high-speed galvanometer scanning, digital signal, high precision and fast speed. The high-quality laser scanning system enables the marking speed to reach 10000mm/s. The laser bracket of the fiber laser marking machine adopts precision alloy and imported precision linear device, the angle of the laser head can be adjusted 180 degrees, front and rear, up and down can be adjusted.





Laser Coding and Marking Machine Main Features:





1.Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.

2.Processing speed is 2 to 3 times the traditional laser marking machine.

3.Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption.

4.Smart Operation System, long lifetime, zero maintenance and zero running cost.

5.Well designed software & High speed hardware support the high speed inline marking, up to 200m/min, based on different materials.







Technical Parameters of Coding and Marking Machine:



1 Product name LF30 Fiber Laser marking machine
2 Power 30W
3 Laser type Fiber laser
4 Laser wavelength 1064 nm
5 Cooling way Air cooling
6 Printing range Standard 110mm×110mm
7 Printing speed ≤7000mm/s
8 Marking line type Dot matrix, bold, vector all in one
9 Printing line width 0.012mm (based on difference material)
10 File format PLT
11 Typeface Chinese  English (available to customized)
12 Net weight 40kg

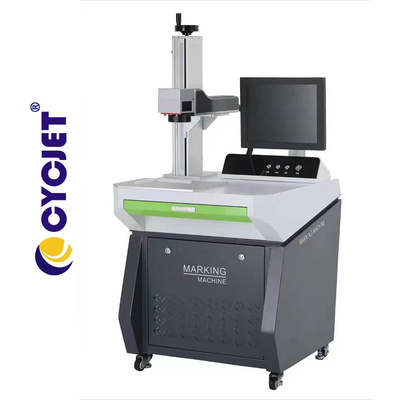

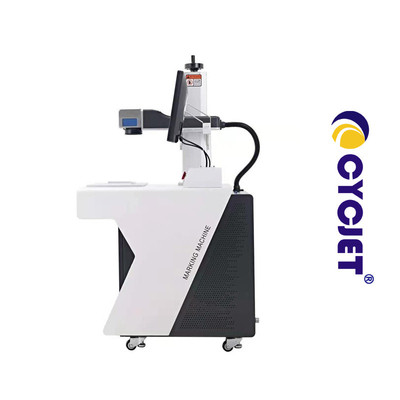

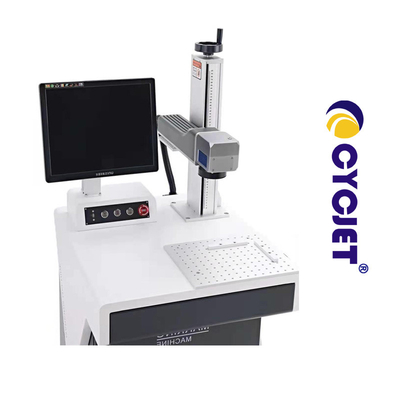

Product Pictures of Coding and Marking Machine:

Desktop 30W Fiber Laser Coding And Marking Machine For Metal Product Engraving 0


Printing Samples of Coding and Marking Machine:

Desktop 30W Fiber Laser Coding And Marking Machine For Metal Product Engraving 1


FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.

Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
