Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS
Model Number D32L-2
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Carton, 43x43x33cm, 13KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DOD Carbon Steel Tube Inkjet Coding Machine Color & Page Single Color
Condition New Warranty One Year
Print Dimension 240mm Application Steel Structure,Building Material,Steel Pipe,Concrete,
Ink Type Solvent-based Ink Brand CYCJET
High Light

DOD Double Head automatic inkjet printer

,

Steel Tube automatic inkjet printer

,

45 DPI solvent based inkjet printer

Leave a Message
Product Description

DOD Automatic Double-Head Inkjet Printer D32L-2 Drop On Demand Carbon Steel Tube Inkjet Coding Machine



Description



CYCJET D Serial DOD large character inkjet printer is well-known in the construction industry, packaging industry, and steel structure industry. Its special printhead system can drive a max of 4 heads by one controller and can supply 7 dots, 16 dots, 32 dots head. Customized data cable & ink pipe available. Moreover, prevent clogging and fast clean function to keep printer suitable for a long time running within a hostile environment. More importantly, the ink system of this inkjet coding machine has its own alarm system. When lacking ink, it will trigger, could remind users promptly to guarantee printer continues printing a long time. The large character inkjet coding machine could print on concrete products, pipes, cartons, woods, plastic, aluminum foils, cardboard boxes, stones, etc. 302x240STN screen makes complete printing contents available for review. It not only can print logos, batch numbers, serial numbers, shift numbers, special marks but also can print count numbers, available to set starting numbers and end numbers.



CYCJET DOD Inkjet printer are different from other urban printer devices. The advantage of the CYCJET Carbon Steel Pipe using the "solenoid valve nozzle" is that it does not block the nozzle. Combined with ruby nozzle, it has the characteristics of wear resistance, high temperature resistance and corrosion resistance. It can still perform marking tasks stably in different harsh environments.Normal,The concrete pipe piles are marked with a harsh environment, especially dust. The large character dot-matrix inkjet printer uses solenoid valve nozzles and ruby nozzles to make the nozzles have a long service life and is not easy to block. It is resistant to high temperature and corrosion in harsh environments and reduces maintenance costs, Also improving the efficiency of the marking process.



Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer 0



Advantage & Sell Points

  • Reversal & rotation printing
  • Sensor or Encoder drive printing
  • Continue repeat printing
  • 6.25-45DPI & Bold font Printing
  • 5x5,7x5,9x6,12x8, 16x12 printing
  • Can print on metal, plastic, wood, aluminum foil, cardboard boxes, stone, pipe, cable
  • Batch number, serial number, count number printing, available to set starting number and end number



Technical Parameters



1 Print Height 32dots (Model: D32L-2): Max 240mm font height, Multi- lines printing
2 Print Spacing 8—10mm
3



Basic configuration

printing max two lines of numbers, or English, all the national standard database of Chinese characters and English letter, self- simple graphics, the machine without external gas source, free

warranty for one year.

4 Print Speed 80m/min
5 Software Function Real-time clock date, product counting, frequency
6 Operation Function English operation system, Delay in printing, the font width, font height, orientation, self-cleaning, sensor settings.
7 Print Content Real Date, Real time, Letter, Shift group, Serial number, Batch number, Lot number can be free print.
8 Print Direction

Upward printing, downward printing, side printing (360°direction

printing)

9 Operator Interfaces Image-style & Chinese or English menu, what you see is what you get.
10 Memory Function More than 60pcs text can be storage
11



Ink Color



Black, Red, Yellow, Blue, white,

12 Protection level Not suitable for high dust, high humidity working environment
13 Powder AC220V±10%, 50 -60HZ, 5 W;
14

Humidity Range

Temperature Range

10-90% Non-condensing

5-40°C

15 Others

No need to connect external compressed air, and no need thinner (i.e.

solvent)



Details Image

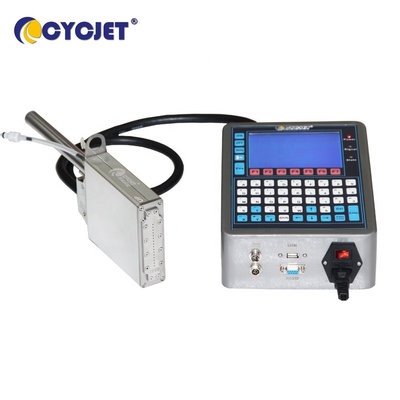

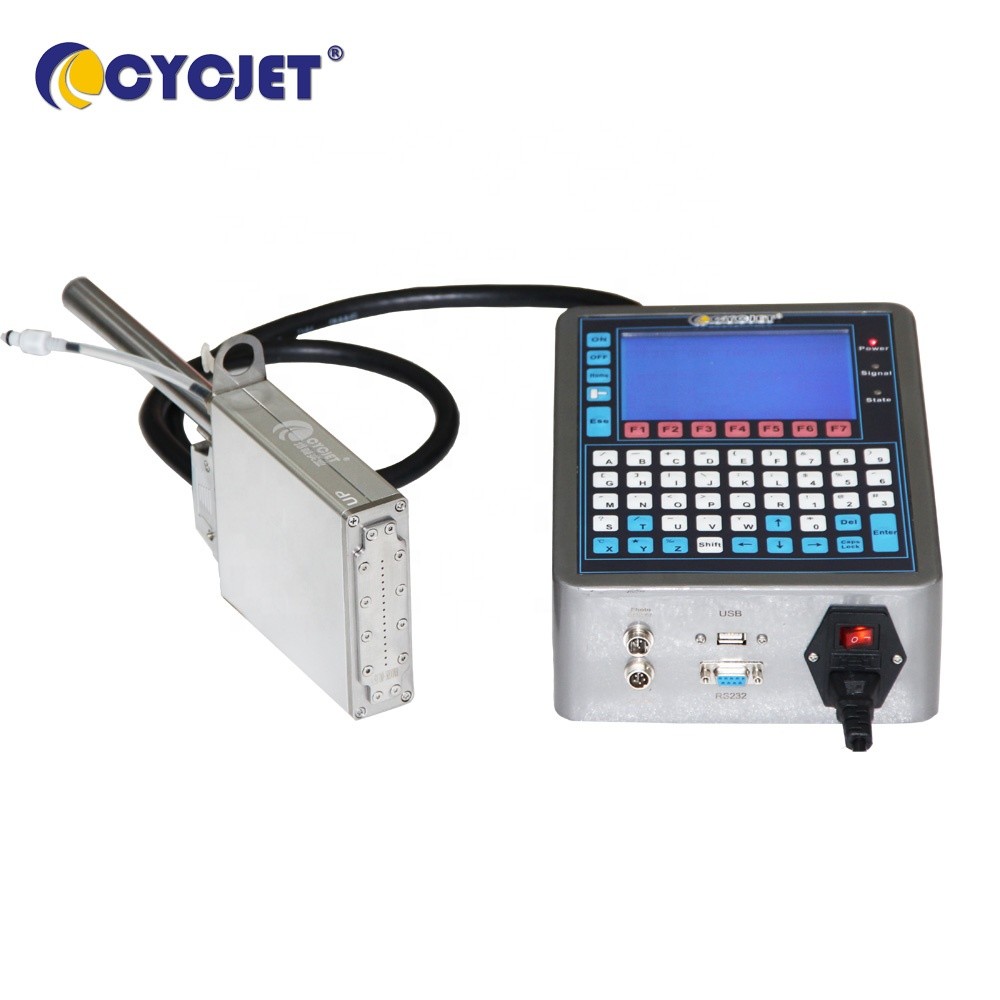

Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer 1



Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer 2



Printing Effects

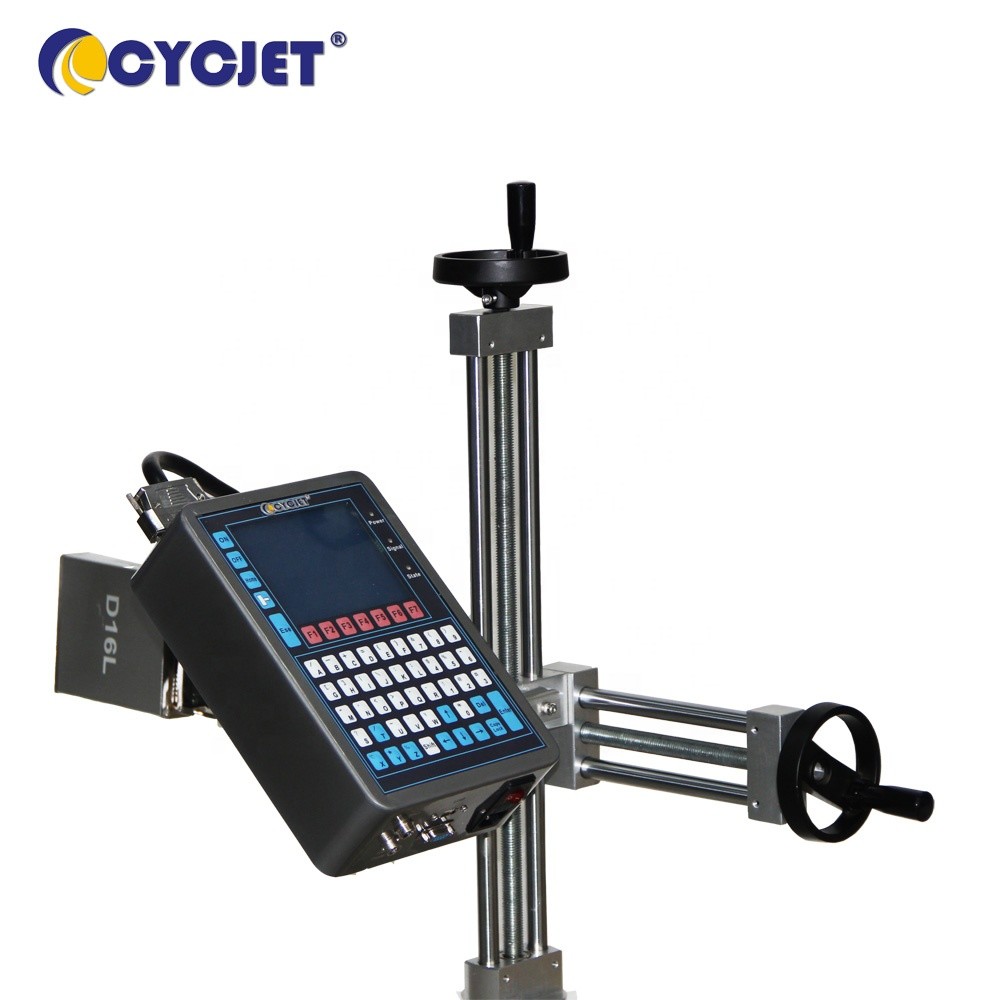

Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer 3



Double Head Automatic Inkjet Printer Steel Tube DOD Solvent Based Inkjet Printer 4





FAQ



Q1. What this large character inkjet printer can print?
A: It can print mfg&exp date, batch number, text, logo etc.

Q2. What materials this large character inkjet printer can print?
A: It can print all materials, like paper, carton, plastic, metal, wood, steel, pipe, bottle etc.

Q3. Are you a factory or a trading company?
A: We have our own factory and we can offer OEM production according to your demand.

Q4. Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and for different uses.

Q5. How can I know your machine works well?
A: Before delivery, we have tested every inkjet printer machine and adjusted it to the best condition. If you have special production condition, we could also adjust the machine for you.
