Mini 50w Laser Cleaning Machine Auto Fiber Laser Cleaner Rust Removal

Place of Origin Shanghai
Brand Name CYCJET
Certification SGS, FDA, CE
Model Number CLC50
Minimum Order Quantity 1 Set
Price USD8500-USD11500
Packaging Details Standard Export Carton
Payment Terms L/C at sight, T/T, Western Union, Western Union, MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 7 Working Days After We Receive Advance Payment Name 50w Fiber Laser Cleaning Machine
Output Power 50W Laser Wavelength 1055nm-1070nm
Scanning Width 1-100mm Washing Methos Handheld Type
Cooling Air Cooling Warranty 12 Months After Receive The Machine
Application Painting Surface, Steel, Alum, Iron Stone, Injection Molding Laser Source MAX/JPT/IPG
High Light

Mini Laser Cleaning Machine

,

50w Laser Cleaning Machine

,

auto fiber laser cleaner rust removal

Leave a Message
Product Description

 Mini 50w Laser Cleaning Machine Auto Fiber Laser Cleaner Rust Removal​
Description of Mini Laser Rust Cleaning Machine:

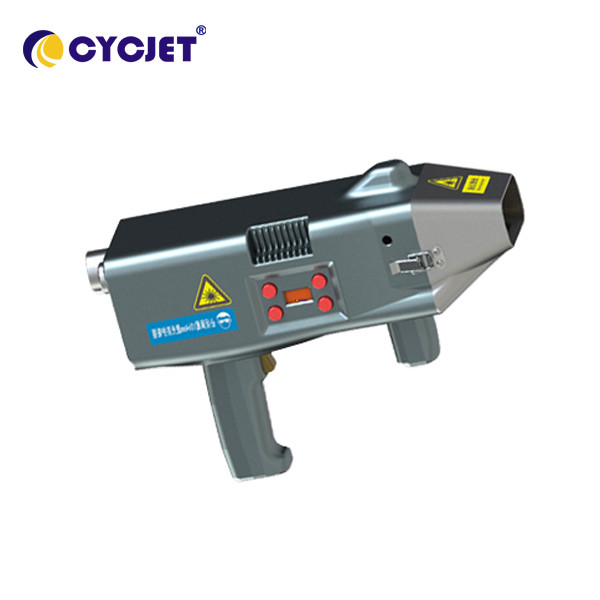

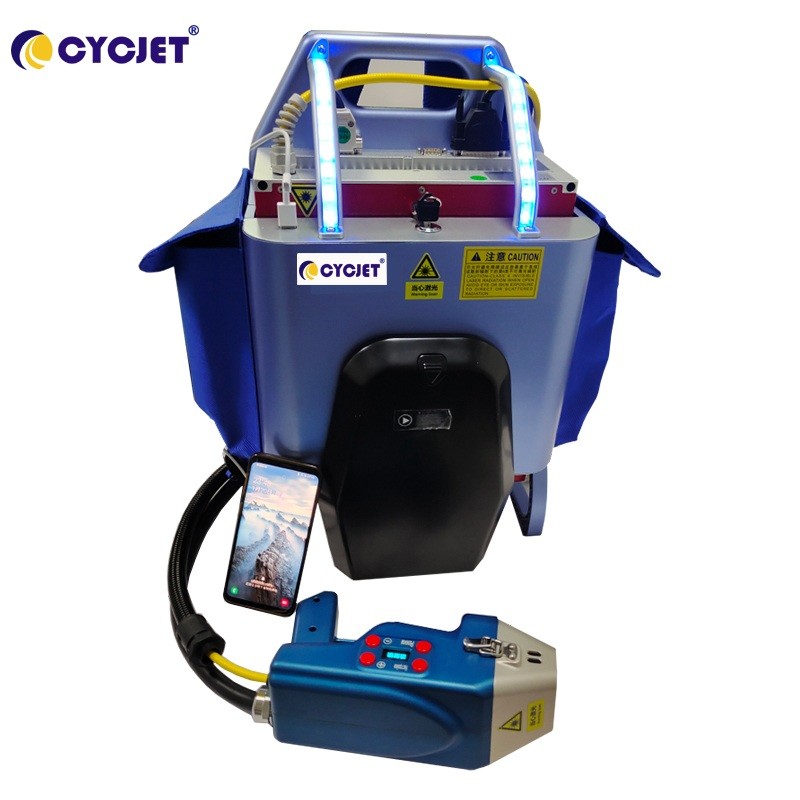

    This is new designed compact knapsack bag laser cleaning machine, power supply by lithium battery, can carry to any place and clean the object easily. The laser cleaning rust machine handheld gun size is smaller, and has a variety of styles to choose from. The control system is equipped with a 0.96-inch touch screen and 4 mechanical buttons. The handheld laser rust removal machine integrated cleaning mode makes the equipment operation easier, safe and more stable, and reduces accidents caused by touch screen failure accident.



    The mini 50w laser cleaning machine can start by single button, the system can start within short time. The monitorng system can monitor machine in real time, so the operator can see the machine status easy through screen. Equipped the safety lock, to avoid unconsciously touching make incorrect operation. This machine has two type cooling system, water and air cooling, make sure the laser source working at the stable temeperature.



    The laser cleaning machine will not have the gasification during cleaning processing, so laser cleaning removal machine do not produce any toxic gas and affect operator safety, or pollute environment. Tire molding laser cleaning machine already widely used in some European and American tire factories. Although the initial investment cost much higher than normal cleaning machinery, but the factory can save more money for standby time, avoiding molding damage, safe production and saving raw materials.




Specification of Laser Rust Cleaning Machine:

1 Product Name:  Mini laser cleaning machine 50w used for auto parts rust removal, laser rusting cleaning machine
2 Average Output Power: 50W
3 Output power Instability <5%
4 Repeat Frequency 10-50kHz (adjustable)
5 Cleaning Mode
6 Standard cable length 3m
7 Scanning Width Range: 1-50 mm
8 Focal length(mm) 160/220mm
9 Battery Volume 10AH
10 Overall Size 360*500*230mm
11 Cleaning Head Weight:  2.5kgs
12 Net Weight:  12kgs
13 Working Environment Temperature: 5-40 degree



Comparasion of Advantage of Laser Cleaning Machine


Comparasion Item Laser Cleaning Chemical Cleaning Mechanical Cleaning Dry Ice Cleaning Ulreasonic Cleaning
Cleaning Way no contact Chemical Cleaning Mechenical sand paper, contact no contact Contact
Surface Damage No Yes Yes No No
Cleaning Efficiency High Low Low Midium Medium
Consumable Material Power Only Chemical Liquids Sand paper, grinding wheel etc Dry Ice Special cleaning liquids
Cleaning Result Perfect with high cleanliness Non Uniform Non Uniform Excellent, non uniform Excellent, less clean scope
Precise Cleaning High precision Uncontrolable Uncontrolable Uncontrolable Uncontroable
Safety & Enviromental Protection No Pollution Chemical Liquids pollution Pollution No pollution No pollution
Operation Simple handheld or automatic operation Complicated operation steps,posing high requirement for operator Complicated operation procedures, posing high requirement for operator Simple handheld operation Simple handheld operation, but need more consumable materials
Cost Input High initial investment, no consumable, low maintenance cost Low initial investment, but high consumable material cost High initial investment, high consumable material cost Medium initial investment, high cost for consumable materials Low initial investment, high cost for consumable material


Features of Laser Rust Cleaning Machine:

  1. High efficiency and environmental protection, do not have any chemical pollution during cleaning process. The 50w  laser rust cleaning machine can create powerful laser light, remove the rust on most of auto spare parts
  2. Easy to operate the laser cleaning machine, no need to disassemble and transport the big spare parts like steel frame, heavy duty steel parts. Easy to remove the machine to any place you want, ideal for the big or heavy object which can not transport.
  3. Power on and use without consumables, simple operation, just power on, can be hand-held or cooperate with the robot to realize automatic cleaning
  4. Adjustable laser parameters, suitable for a variety of environments, better cleaning result
  5. The light output width can be set by software, and the cleaning is accurate than other type cleaning.
  6. Real-time monitoring of cleaning quality: The multi-sensor can monitoring cleaning result same time
  7. By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Application of Laser Rust Cleaning Machine

  1. Metal or glass surface coating removal, quick paint removal.
  2. Rapid remove rust and various oxides.
  3. Removes grease, resin, glue, dust, stains, production residues.
  4. Metal and plastic surface roughening
  5. Welding surface, spray surface pretreatmentPaint stripping, rust removal, and oil removal before welding or bonding, and oxide and residue treatment after welding.
  6. Rubber mold surface cleaning


Cleaning result of laser rust cleaning machine on truck tire molding



Mini 50w Laser Cleaning Machine Auto Fiber Laser Cleaner Rust Removal 0



 Application of Laser Rust Cleaning Machine for Auto Parts

Mini 50w Laser Cleaning Machine Auto Fiber Laser Cleaner Rust Removal 1
