Portable Jewelry Fiber Laser Welder Machine 500W High Energy

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLW500
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case, 147x66x67cm, 135KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Performance Portable Laser Welding Machine 500W Fiber Laser Welder Capacity 500W(Can Customized)
Model CLW500 Pulse Width 0.2-50ms
Fiber Output No Single Working Mode Continuous/Pulse
Laser Wavelength 1080nm Cooling System Water Cooling
High Light

Portable Fiber laser welder machine

,

500W laser welder machine

,

jewelry laser welder

Leave a Message
Product Description

High Performance Portable Laser Welding Machine 500W Fiber Laser Welder





Description:



High Performance Portable 500W Laser Welding Machine. Laser welding machine uses high-energy pulsed laser to focus and melt the target metal to weld the workpieces. The pulsed xenon lamp is used as the pump source, the laser power is controlled by the microprocessor, and the pre-burned xenon lamp is discharged under closed-loop control to form a pulsed light wave with a certain pulse width, a certain frequency, and a certain energy curve. The cavity converges on the ND:YAG crystal, the laser crystal emits light, and after the resonant cavity resonates, a pulsed laser of 1064 nm is emitted. The pulsed laser is expanded, reflected, and focused on the metal surface to form a molten pool, so as to achieve the purpose of welding, laser welding machines can weld the same or different materials together. What’s more, the laser welding machine can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, when a laser passes through an electromagnetic field, the beam will not be deflected; light can weld in vacuum, air, and certain gas environments, and can weld through glass or materials that are transparent to the beam.





Main Features:



  1. Welding is using a laser beam focused by a high-power coherent monochromatic photon stream. The advantage is that it does not need to be carried out in a vacuum
  2. Accurate energy control can be carried out, so the welding of precision devices can be realized.
  3. The characteristics of laser welding are fast speed, large depth, small deformation, and small heat-affected zone.
  4. Smooth and clean weld with or without simple process after welding.
  5. The microstructure can be refined after welding, Weld strength is at least equal to or exceeds base metal strength.



Technical Parameters:


1 Frame Material ALUM & Steel.
2 Laser Device Fiber Laser
3 Power ≥500W
4 Max. laser pulse energy 15J
5 Pulse Width 0.2-50ms
6 Fiber Output No Single
7 Working Mode Continuous/Pulse
8 Laser Wavelength 1080nm
9 Welding Thickness Carbon Steel (C235) 0.5-3.8mm
10 Welding Thickness Stainless Steel (304) 0.5-3.8mm
11 Power Supply 220V/50-60HZ
12 Power Consumption 5600W

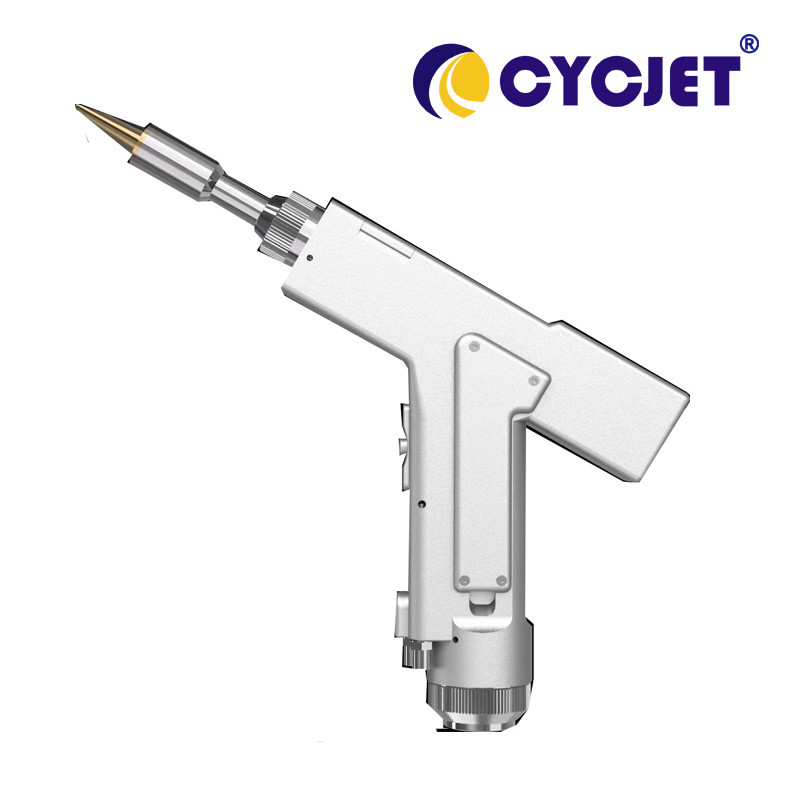

Products Picture:

Portable Jewelry Fiber Laser Welder Machine 500W High Energy 0

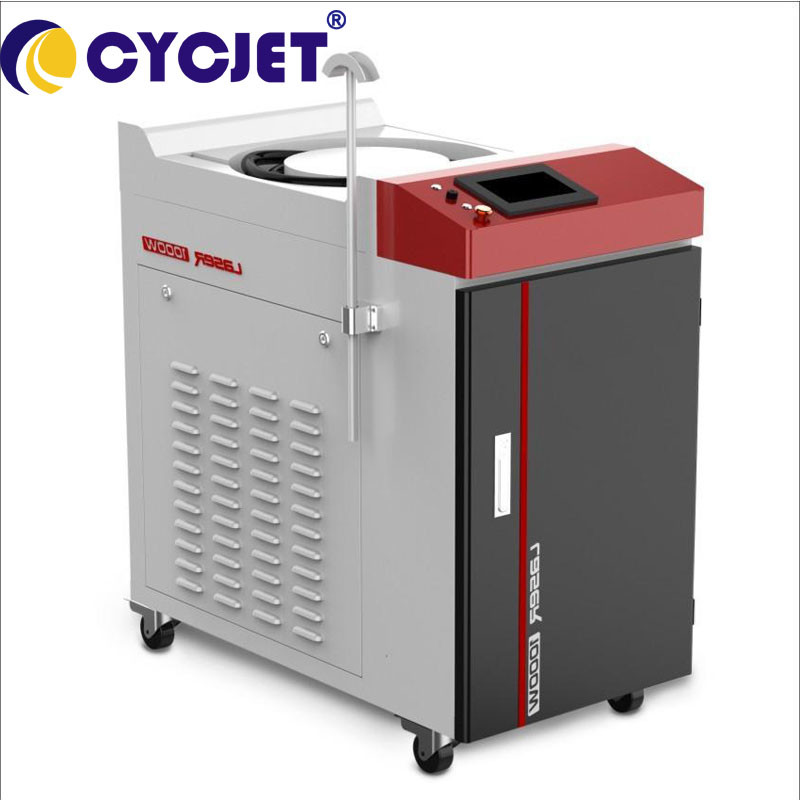

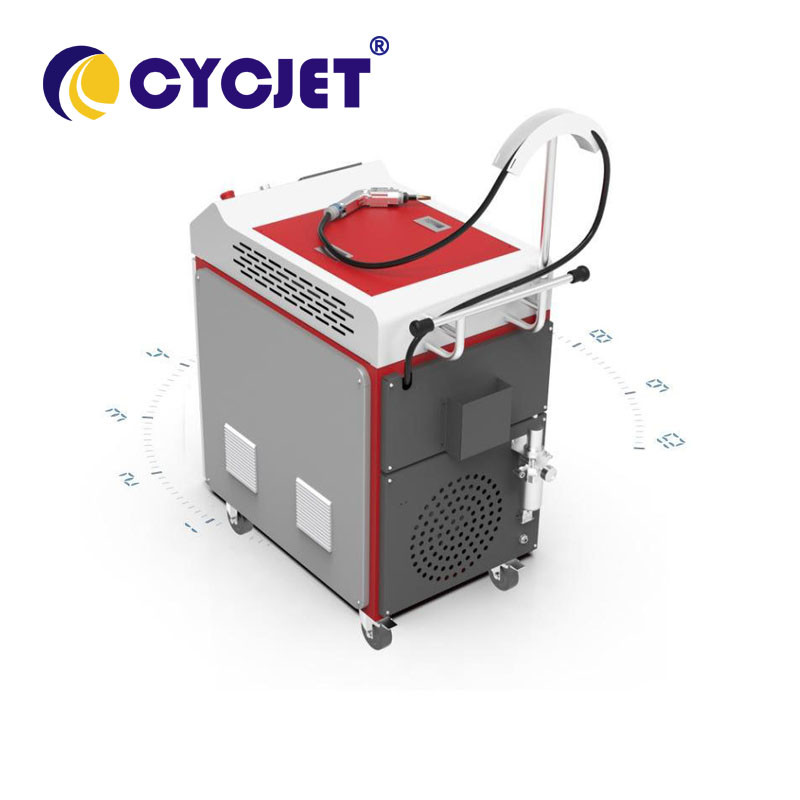

Application:

Portable Jewelry Fiber Laser Welder Machine 500W High Energy 1



Portable Jewelry Fiber Laser Welder Machine 500W High Energy 2





Company Show:



Portable Jewelry Fiber Laser Welder Machine 500W High Energy 3






FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days
