Touch Screen Handheld 1500W Laser Welding Machine Carbon Steel

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS, FDA
Model Number CLW1500
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Wooden Case, 147x66x67cm, 135KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Performance Handheld Laser Welding Machine 1500W For Carbon Steel Welding Power 1500W(Can Customized)
Model CLW1500 Welding Thickness 0.5-3.8mm
Operation System Touch Screen Language English
Warranty 1 Year Package Wooden Case
High Light

Touch Screen Laser Welding Machine

,

1500W Laser Welding Machine

,

carbon steel welding

Leave a Message
Product Description

High Performance Handheld Laser Welding Machine 1500W For Carbon Steel Welding





Description:



High Performance 1500W Laser Welding Machine. Laser welding machine can be used for welding of carbon steel, as well as stainless steel, alloy steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals and their alloys. Copper-nickel, nickel-titanium, titanium-steel, titanium-molybdenum, brass-copper, and other dissimilar metals also can be used by the laser welding machine. Because of its powerful functions and wide application range, laser welding machines are widely used in plastic molds, rubber molds, metal molds, hardware products, precision casting, jewelry, precision instruments, medical equipment, auto parts, craft gifts, glasses and clocks, mobile phones, communication, electronic components, connectors and other industries. In addition, the laser welding machine is also used in the group welding of tiny components, such as motor electrodes, optical fiber devices, etc., which can be welded in the greenhouse or under special conditions.



Main Features:



  1. Fast speed, large depth and small deformation.
  2. Micro welding is possible. After the laser beam is focused, a small spot can be obtained, and it can be precisely positioned, which can be applied to the group welding of micro and small workpieces in mass automatic production.
  3. It can weld hard-to-reach parts and perform non-contact long-distance welding with great flexibility.
  4. The heat input can be reduced to the minimum required amount, the metallographic change range of the heat affected zone is small, and the deformation caused by heat conduction is also the lowest.
  5. No electrodes are required, and there is no concern of electrode contamination or damage.





Technical Parameters:


1 Frame Material ALUM & Steel.
2 Laser Device Fiber Laser
3 Power ≥1000W
4 Max. laser pulse energy 15J
5 Welding Thickness Carbon Steel (C235) 0.5-3.8mm
6 Welding Thickness Stainless Steel (304) 0.5-3.8mm
7 Welding Thickness Galvanized sheet 0.5-3.5mm
8 Output Stability 3%
9 Modulation Frequency 50KHz
10 Angle of divergence <0.1
11 Fiber Diameter(um) 100
12 Fiber Length 15m



Products Picture:

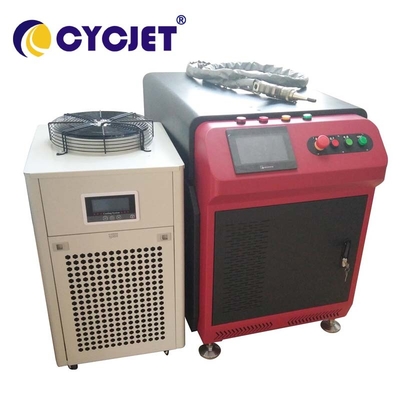

Touch Screen Handheld 1500W Laser Welding Machine Carbon Steel 0





Application:

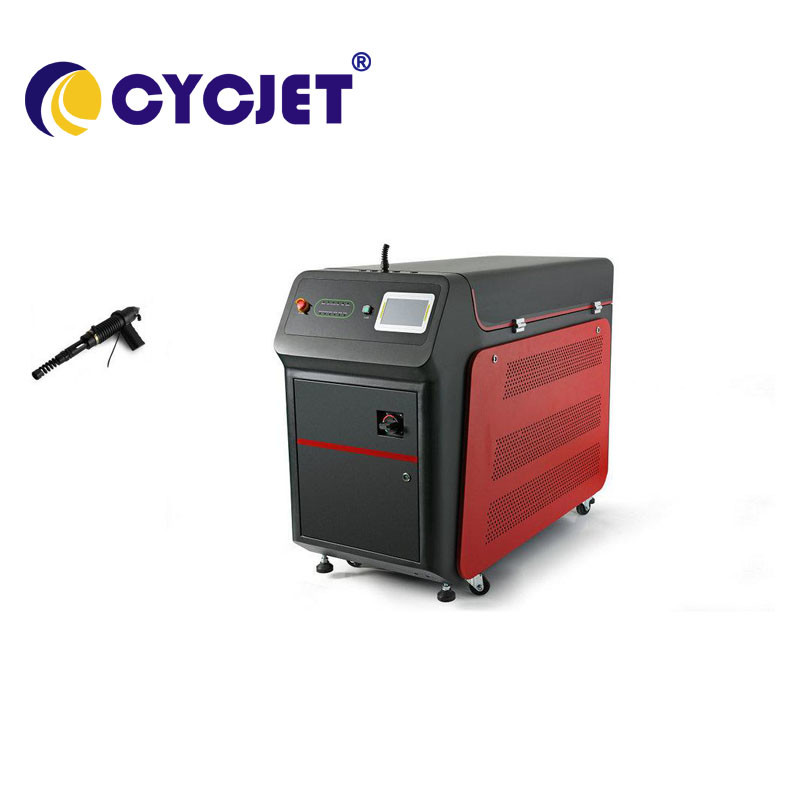

Touch Screen Handheld 1500W Laser Welding Machine Carbon Steel 1

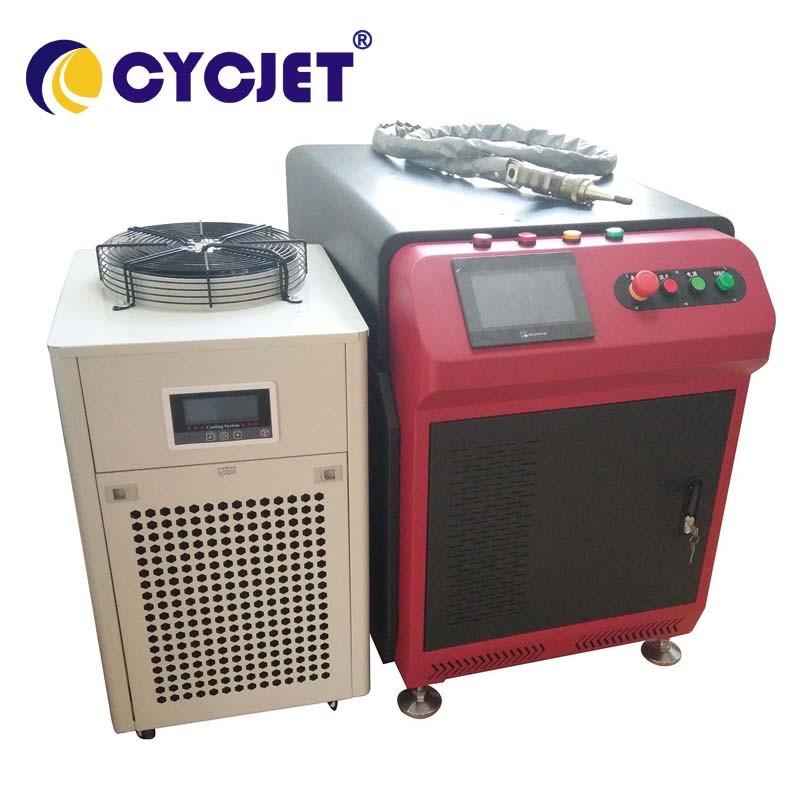

Touch Screen Handheld 1500W Laser Welding Machine Carbon Steel 2





Company Show:

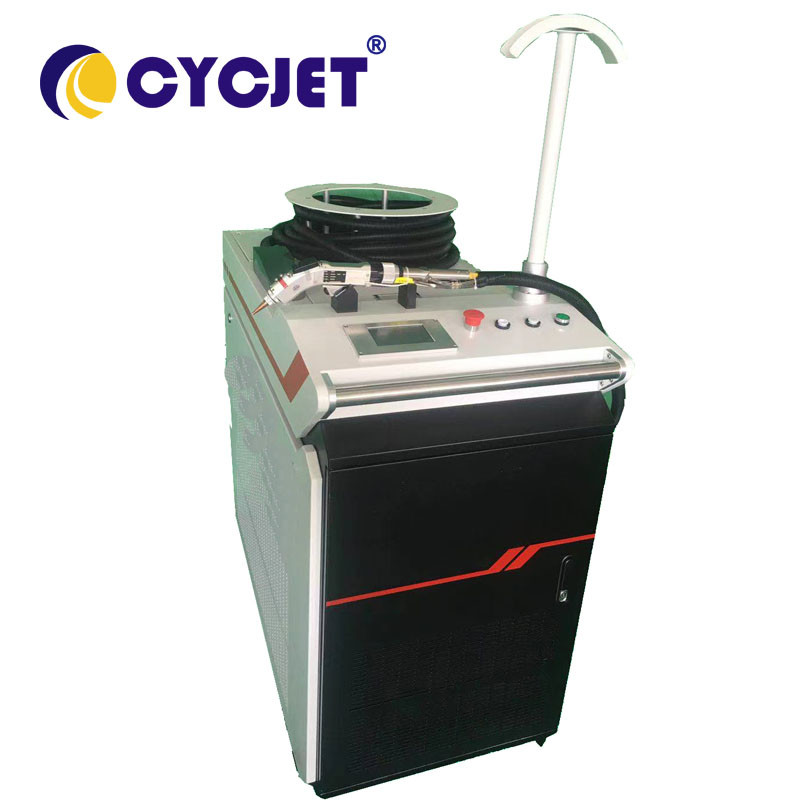

Touch Screen Handheld 1500W Laser Welding Machine Carbon Steel 3






FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
