DOD Automatic 25mm Large Character Online Inkjet Printer Batch Coding Machine

Place of Origin Shanghai, China
Brand Name CYCJET
Certification CE, SGS
Model Number D07L
Minimum Order Quantity 1 Set
Price Negotiated
Packaging Details Carton, 43x43x33cm, 13KG
Delivery Time 10-12 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name D07L Large Character Inkjet Printer Color & Page Multicolors
Print Size Max 25mm Application Steel Structure, Building Material, Steel Pipe, Concrete
Max Print Speed 80m/min Print Distance 2-10mm
High Light

DOD Automatic Inkjet Printer

,

25mm Large Character Inkjet Printer

,

inkjet coding machine

Leave a Message
Product Description

Automatic Large Character Online Inkjet Printer D07L Batch Coding Machine





Description of Large Character Inkjet Printer:



CYCJET D Serial DOD large character inkjet printer is well-known in the construction industry, packaging industry, and steel structure industry. Its special printhead system can drive a max of 4 heads by one controller and can supply 7 dots, 16 dots, and 32 dots heads.



Customized data cable & ink pipe available. Moreover, prevent clogging and fast clean function to keep the printer suitable for a long time running within a hostile environment.



More importantly, the ink system of this inkjet coding machine has its own alarm system. When lacking ink, it will trigger and could remind users promptly to guarantee the printer continues printing for a long time.



The large character inkjet coding machine could print on concrete products, pipes, cartons, woods, plastic, aluminum foils, cardboard boxes, stones, etc. 302x240STN screen makes complete printing contents available for review. It not only can print logos, batch numbers, serial numbers, shift numbers, and special marks but also can print count numbers, available to set starting numbers and end numbers.





Technical Parameters of Large Character Inkjet Printer



Print Height



7 dots (Model: D07L): Max 25mm font height, single lines printing only



Print Spacing



8—10mm





Basic configuration



printing max two lines of numbers, or English, all the national standard database of Chinese characters and English letters, self- simple graphics, the machine without external gas source, free warranty for one year.



Print Speed



80m/min



Software Function



Real-time clock date, product counting, frequency



Operation Function



English operation system, Delay in printing, the font width, font height, orientation, self-cleaning, and sensor settings.



Print Content



Real Date, Real time, Letter, Shift group, Serial number, Batch number, and Lot number can be freely printed.



Print Direction



Upward printing, downward printing, side printing (360°direction

printing)



Operator Interfaces



Image-style & Chinese or English menu, what you see is what you get.



Memory Function



More than 60pcs texts can be storage





Ink Color



Black, Red, Yellow, Blue, white, etc.



Protection level



Not suitable for high dust, high humidity working environment



Powder



AC220V±10%, 50 -60HZ, 5 W;



Humidity Range

Temperature Range



10-90% Non-condensing

5-40°C



Others



No need to connect external compressed air, and no need for thinner (i.e.

solvent)







Details Image of Large Character Inkjet Printer:

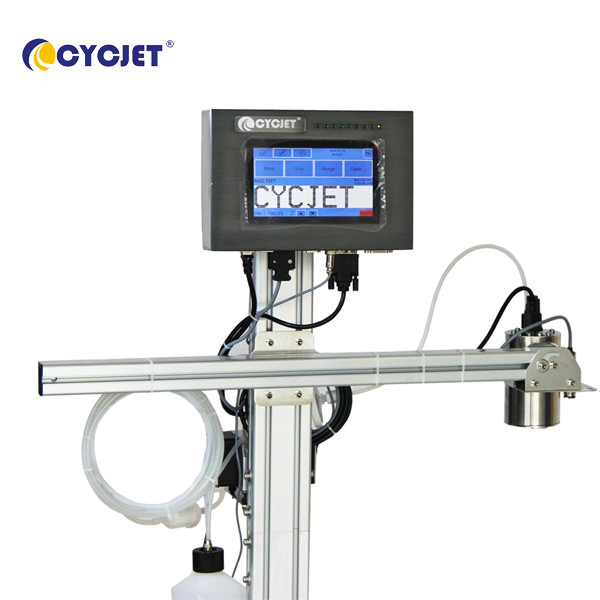

DOD Automatic 25mm Large Character Online Inkjet Printer Batch Coding Machine 0

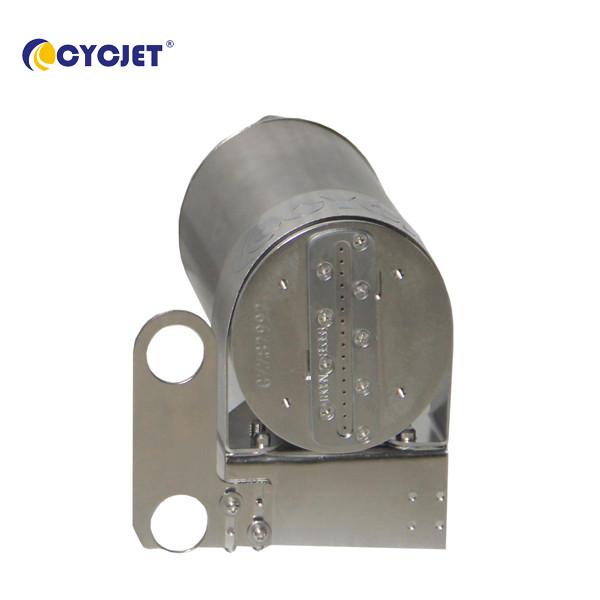

DOD Automatic 25mm Large Character Online Inkjet Printer Batch Coding Machine 1

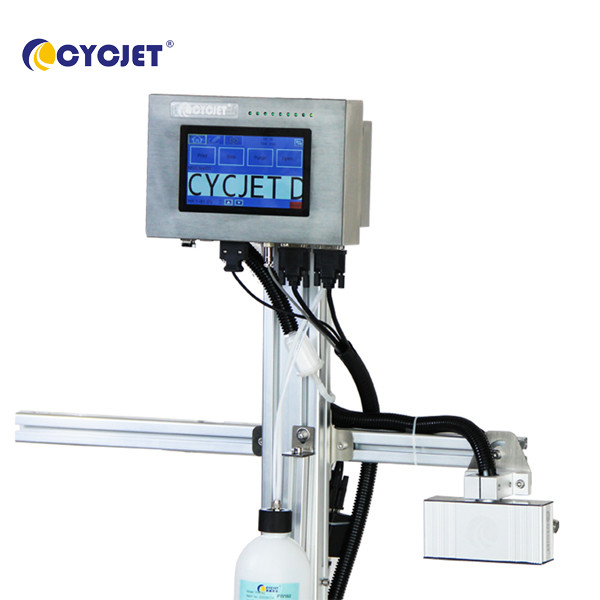

DOD Automatic 25mm Large Character Online Inkjet Printer Batch Coding Machine 2





Printing Effects of Large Character Inkjet Printer:



DOD Automatic 25mm Large Character Online Inkjet Printer Batch Coding Machine 3





FAQ:



Q1. What this large character inkjet printer can print?
A: It can print mfg&exp date, batch number, text, logo, etc.

Q2. What materials this large character inkjet printer can print?
A: It can print all materials, like paper, cartons, plastic, metal, wood, steel, pipe, bottle, etc.

Q3. Are you a factory or a trading company?
A: We have our own factory and we can offer OEM production according to your demand.

Q4. Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and for different uses.

Q5. How can I know your machine works well?
A: Before delivery, we tested every inkjet printer machine and adjusted it to the best condition. If you have special production conditions, we could also adjust the machine for you.
